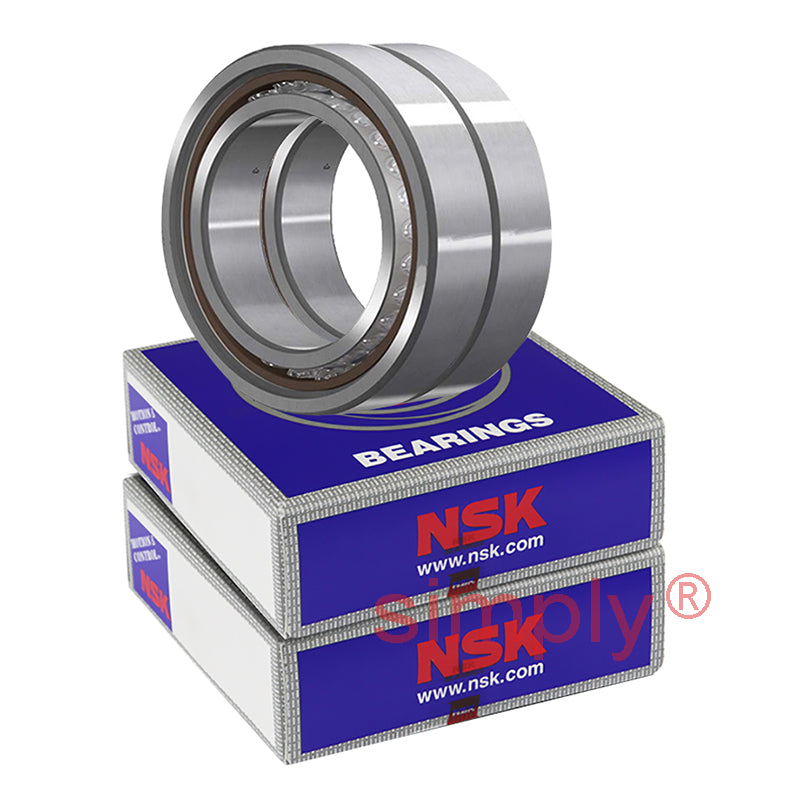

• NSK 7006A5TRDULP3 Super Precision Angular Contact Spindle Bearing 30x55x13mm (Set of 2)
1 1

SKU: 7006A5TRDULP3-NSK

NSK 7006A5TRDULP3 Super Precision Angular Contact Spindle Bearing 30x55x13mm (Set of 2)

NSK 7006A5TRDULP3 Super Precision Angular Contact Spindle Bearing 30x55x13mm (Set of 2)
CHF 232.00 ex VAT
CHF 232.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 185.20
5+ CHF 174.80
10+ CHF 172.72
25+ CHF 170.64
49+ CHF 168.56
74+ CHF 166.48
99+ CHF 156.07
199+ CHF 153.99
249+ CHF 151.91
499+ CHF 149.83
999+ CHF 145.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
30mm
Outside Diameter:
55mm
Width:
13mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 30mm
D 55mm
B 13mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 15.1Kn
C<sub>or</sub> 9.8kN
Axial load Kn 8.05 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 16.4mm
Max speed in grease 23600 rpm
Max speed in oil 35300 rpm
--- Fitting dimensions
d<sub>a min</sub> 36mm
D<sub>a max</sub> 49mm
D<sub>b max</sub> 50mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.228kg
