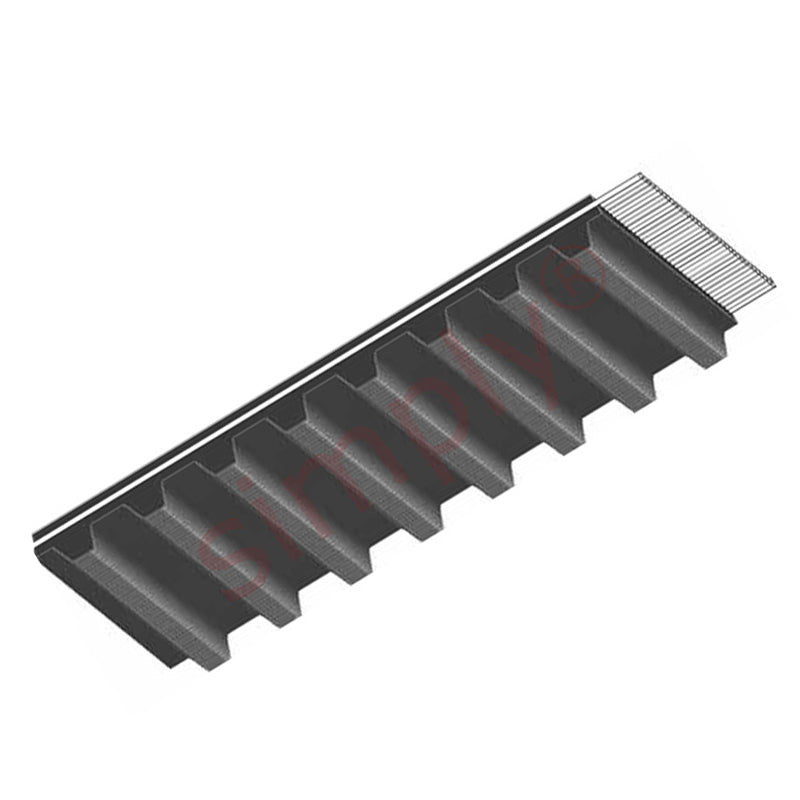

6T2.5/210 ContiTech Synchroflex Toothed Beltwith Bigger Back Thickness 6mm Wide 2.5mm Pitch 84 Teeth

SKU: 6T2.5/210

6T2.5/210 ContiTech Synchroflex Toothed Beltwith Bigger Back Thickness 6mm Wide 2.5mm Pitch 84 Teeth

CHF 13.00 ex VAT
CHF 13.00
ex VAT
Not in stock

Quantity Price Breaks

3 CHF 11.57
5 CHF 10.92
9 CHF 10.79
19 CHF 10.66
49 CHF 10.53
74 CHF 10.40
99 CHF 9.75
199 CHF 9.62
249 CHF 9.49
499 CHF 9.36
999 CHF 9.10
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
6T2.5/210 ContiTech Synchroflex Toothed Beltwith Bigger Back Thickness 6mm Wide 2.5mm Pitch 84 Teeth
SKU: 6T2.5/210

6T2.5/210 ContiTech Synchroflex Toothed Beltwith Bigger Back Thickness 6mm Wide 2.5mm Pitch 84 Teeth

CHF 13.00 ex VAT
CHF 13.00
ex VAT

Description

Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.

Technical

No Teeth = 84
Width = 6mm
Tooth Pitch t = 2.5mm
Belt Length = 210mm
Belt Thickness h< = sub>
s< = /sub>
= 1.3mm
Tooth Height h< = sub>
t< = /sub>
= 0.7mm
Flank Angle = 40 deg
Tension member loadings = 65 Fadm(N)
Belt weight = 0.009kg/m
