SKU: 6940-NACHI

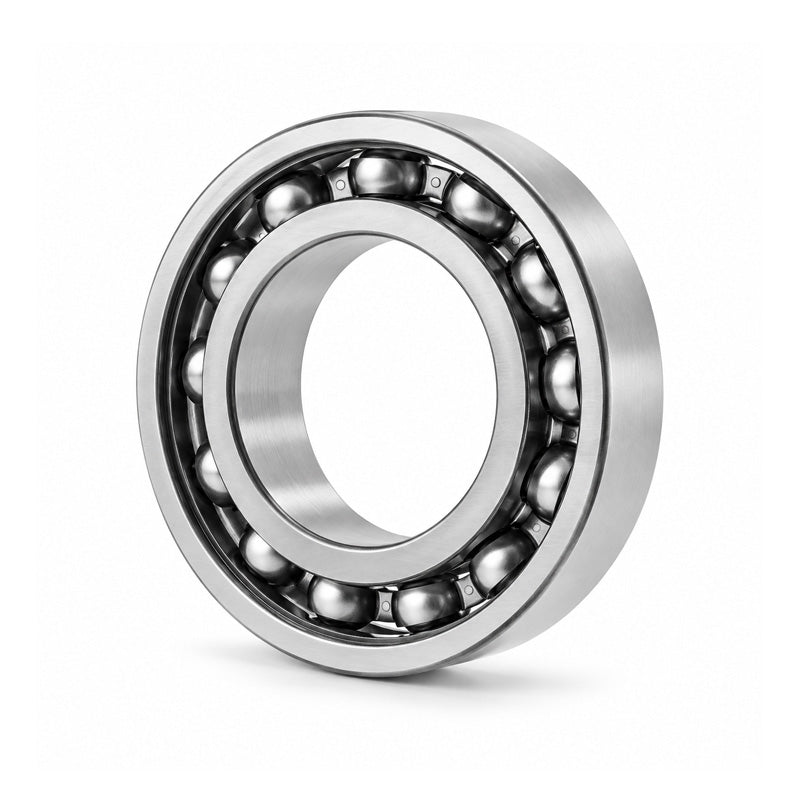

NACHI 6940 Thin Section Open Deep Groove Ball Bearing 200x280x38mm
NACHI 6940 Thin Section Open Deep Groove Ball Bearing 200x280x38mm
Equivalent to: 61940
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 280mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 200mm |
|---|---|
| Outside Diameter D | 280mm |
| Width B | 38mm |
| Min radius r | 2.1mm |
| Dynamic load | 130000 kN |
| Static load | 146000 kN |
| Max speed in oil | 2600 rpm |
| Max speed in grease | 2200 rpm |
| da min | 209mm |
| Da max | 271mm |
| ra max | 2mm |
| Weight | 6.88 kg |
