SKU: 6922LLU/2AS-NTN

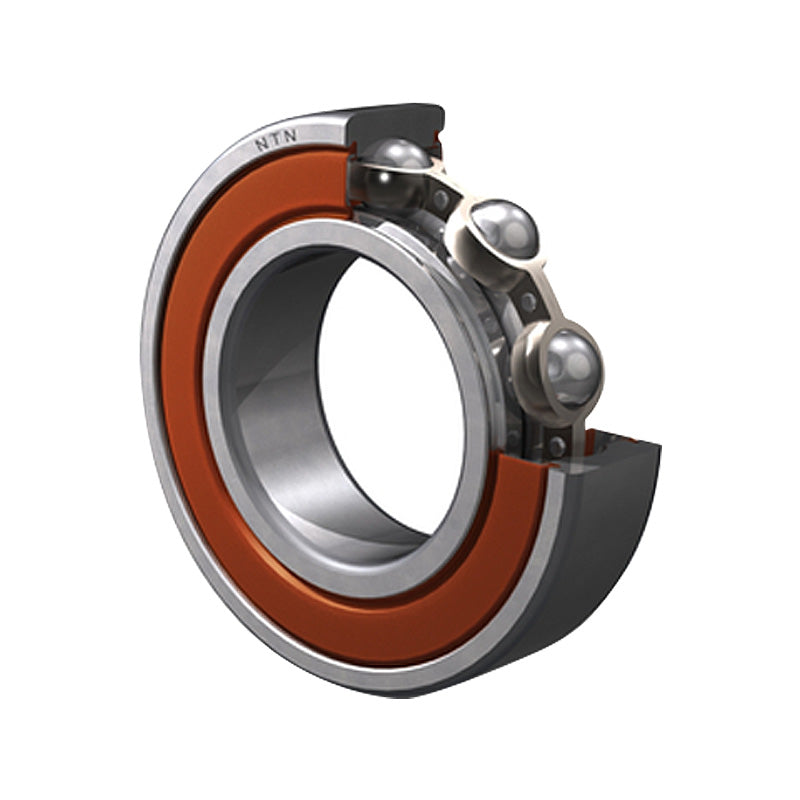

NTN 6922LLU/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 110x150x20mm
Equivalent to: 6922LLUCM 61922LLUCM 6922LLU 61922LLU 6922NSE 6922DU 6922RS 6922RSH 6922P 6922RSR 6922LU 69222NSE 6922DDU 69222RS 6922-2RS 69222RS1 69222RSH 6922PP 69222RSR 6922LLU 6922RS2 69222RS2 69222RSL 6922LFS 6922EE 1922SZZ 6922DD AY1102RS 9322NPP
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 150mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 150mm |
| B | 20mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 48.5 kN |
| C<sub>or</sub> | 44.5 kN |
| C<sub>u</sub> | 2.6 kN |
| f<sub>0</sub> | 16.6 kN |
| Speed | 2400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 116.5mm |
| d<sub>a</sub> Max. | 120mm |
| D<sub>a</sub> Max. | 143.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.849 kg |
