SKU: 6920-ZZ/C3-NACHI

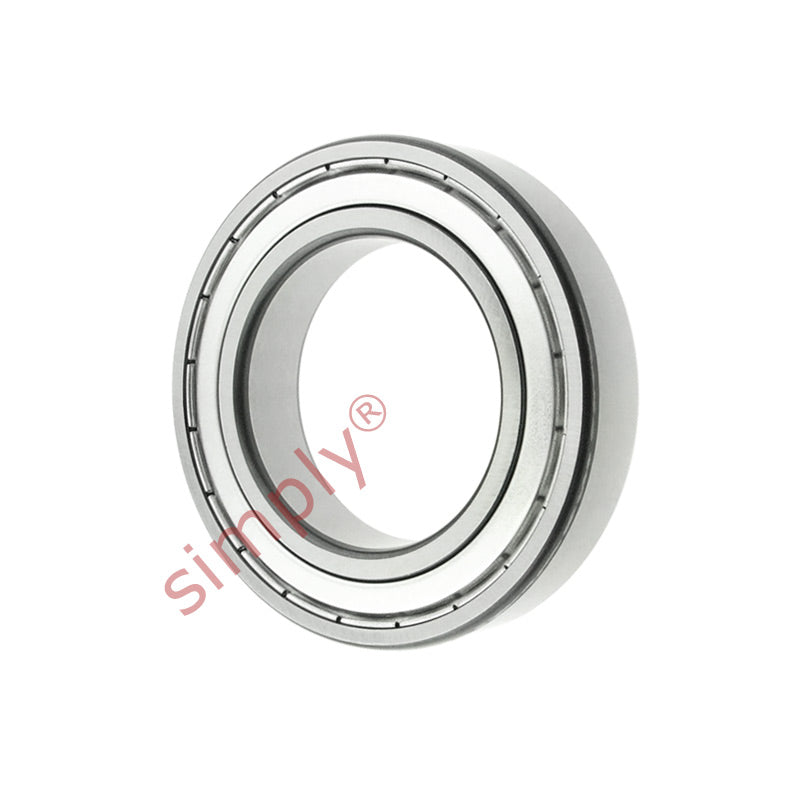

NACHI 6920ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 100x140x20mm
NACHI 6920ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 100x140x20mm
Equivalent to: 6920ZZEC3 69202ZC3 6920.2ZC3 6920KDDC3 6920DDC3 69202ZRC3 6920FFC3 61920ZZEC3 61920ZZC3 619202ZC3 61920.2ZC3 61920KDDC3 61920DDC3 619202ZRC3 61920FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 140mm
- Width:
- 20mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 100mm |
|---|---|
| Outside Diameter D | 140mm |
| Width B | 20mm |
| Min radius r | 1.1mm |
| Dynamic load | 42500 kN |
| Static load | 36500 kN |
| Max speed | 4500 rpm |
| da min | 106mm |
| Da max | 134mm |
| ra max | 1mm |
| Weight | 0.771 kg |
