SKU: 6914LLU/5K-NTN

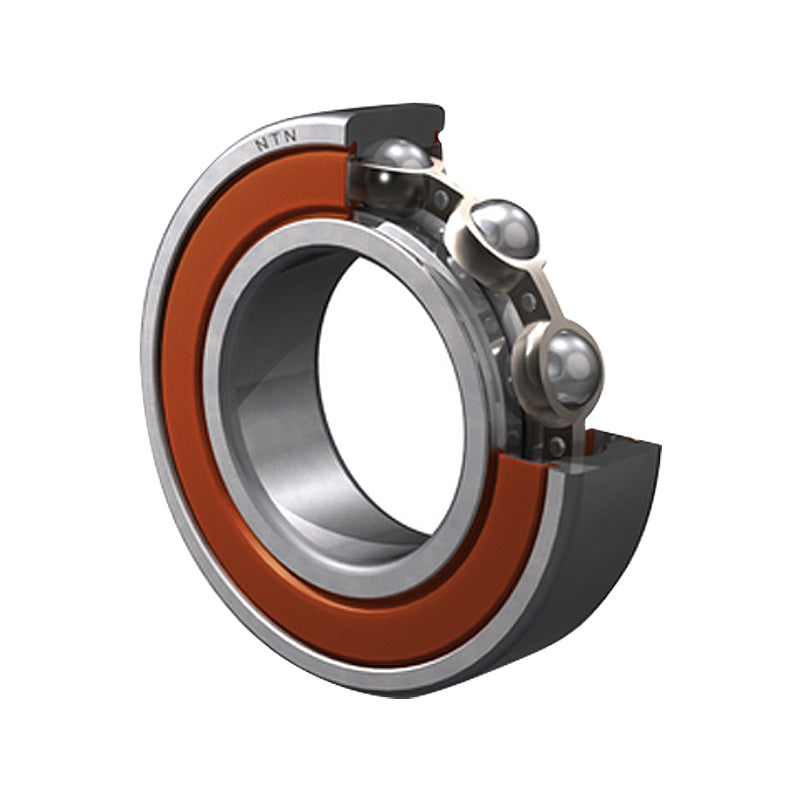

NTN 6914LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 70x100x16mm
Equivalent to: 6914LLUCM 61914LLUCM 6914LLU 61914LLU 6914NSE 6914DU 6914RS 6914RSH 6914P 6914RSR 6914LU 69142NSE 6914DDU 69142RS 6914-2RS 69142RS1 69142RSH 6914PP 69142RSR 6914LLU 6914RS2 69142RS2 69142RSL 6914LFS 6914EE 1914SZZ 6914DD AY702RS 9314NPP
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 100mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 70mm |
| D | 100mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 26.3 kN |
| C<sub>or</sub> | 21.2 kN |
| C<sub>u</sub> | 1.45 kN |
| f<sub>0</sub> | 16.3 kN |
| Speed | 3700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 75mm |
| d<sub>a</sub> Max. | 77.5mm |
| D<sub>a</sub> Max. | 95mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.334 kg |
