SKU: 6913LLU/5K-NTN

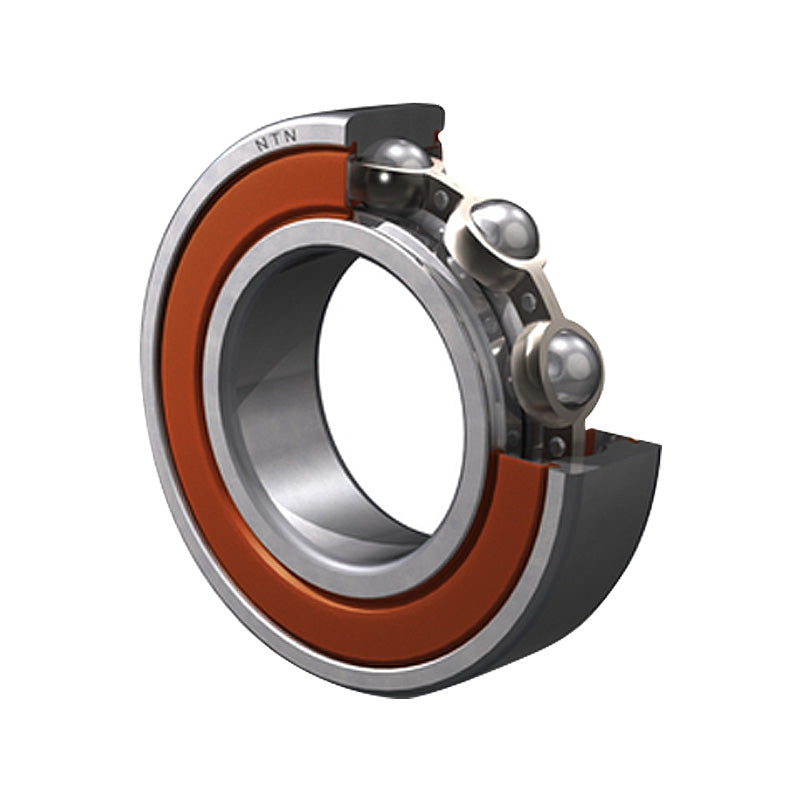

NTN 6913LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 65x90x13mm
Equivalent to: 6913LLUCM 61913LLUCM 6913LLU 61913LLU 6913NSE 6913DU 6913RS 6913RSH 6913P 6913RSR 6913LU 69132NSE 6913DDU 69132RS 6913-2RS 69132RS1 69132RSH 6913PP 69132RSR 6913LLU 6913RS2 69132RS2 69132RSL 6913LFS 6913EE 1913SZZ 6913DD AY652RS 9313NPP
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 90mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 19.3 kN |
| C<sub>or</sub> | 16.1 kN |
| C<sub>u</sub> | 1.07 kN |
| f<sub>0</sub> | 16.6 kN |
| Speed | 4000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 70mm |
| d<sub>a</sub> Max. | 71.5mm |
| D<sub>a</sub> Max. | 85mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.206 kg |
