SKU: 6911LLU/5K-NTN

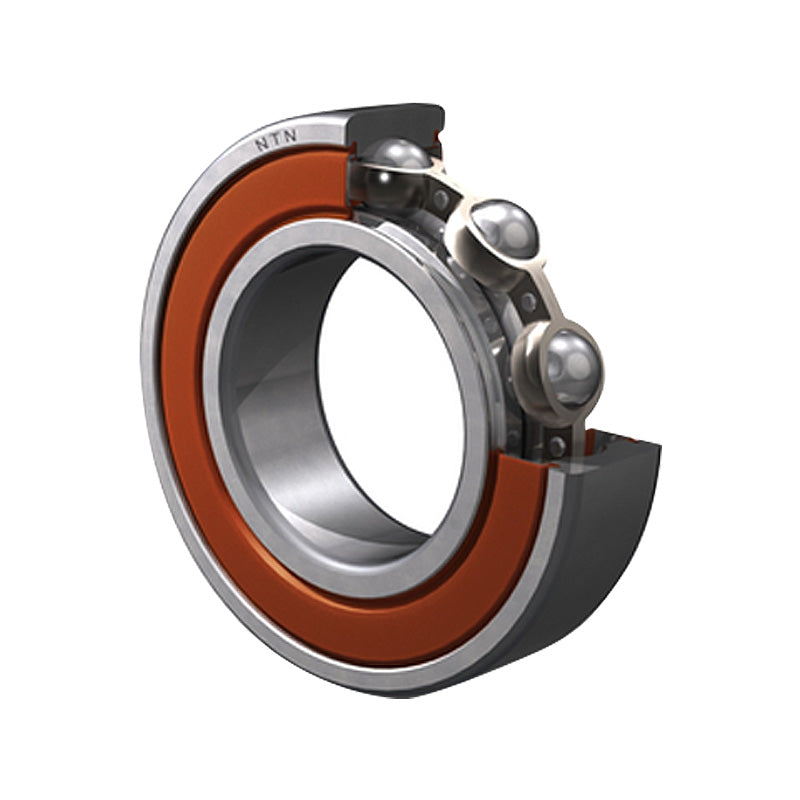

NTN 6911LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 55x80x13mm
Equivalent to: 6911LLUCM 61911LLUCM 6911LLU 61911LLU 6911NSE 6911DU 6911RS 6911RSH 6911P 6911RSR 6911LU 69112NSE 6911DDU 69112RS 6911-2RS 69112RS1 69112RSH 6911PP 69112RSR 6911LLU 6911RS2 69112RS2 69112RSL 6911LFS 6911EE 1911SZZ 6911DD AY552RS 9311NPP
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 80mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 80mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 17.7 kN |
| C<sub>or</sub> | 13.3 kN |
| C<sub>u</sub> | 0.915 kN |
| f<sub>0</sub> | 16.2 kN |
| Speed | 4600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 60mm |
| d<sub>a</sub> Max. | 61.5mm |
| D<sub>a</sub> Max. | 75mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.18 kg |
