SKU: 6908-ZZE/C3-NACHI

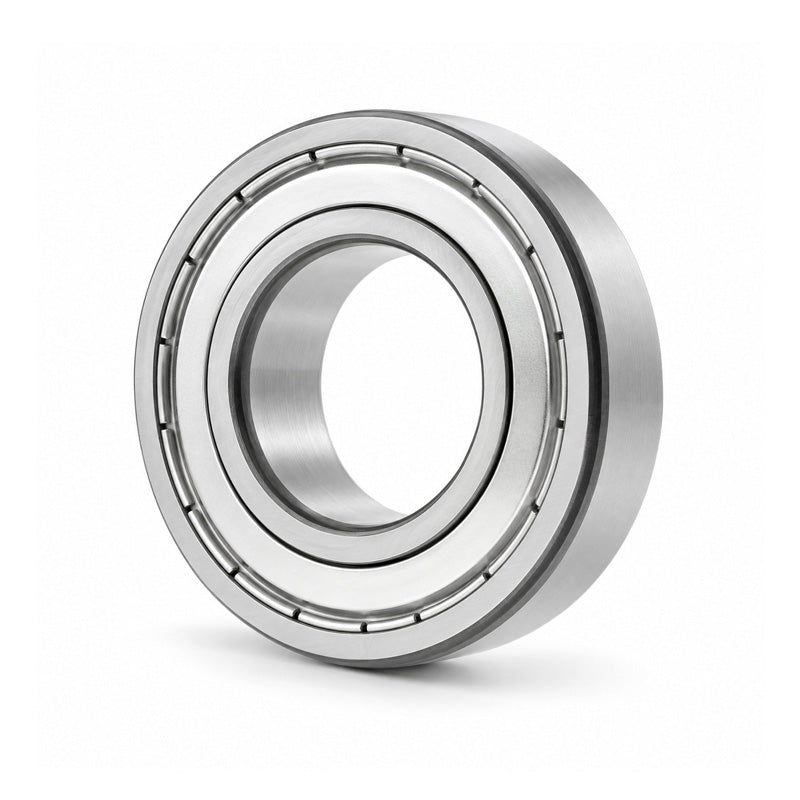

NACHI 6908ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 40x62x12mm
NACHI 6908ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 40x62x12mm
Equivalent to: 6908ZZC3 69082ZC3 6908.2ZC3 6908KDDC3 6908DDC3 69082ZRC3 6908FFC3 61908ZZEC3 61908ZZC3 619082ZC3 61908.2ZC3 61908KDDC3 61908DDC3 619082ZRC3 61908FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 62mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 13700 kN |
| Static load | 9950 kN |
| Max speed | 11000 rpm |
| da min | 44mm |
| Da max | 58mm |
| ra max | 0.6mm |
| Weight | 0.108 kg |
