SKU: 6905-2NKE-NACHI

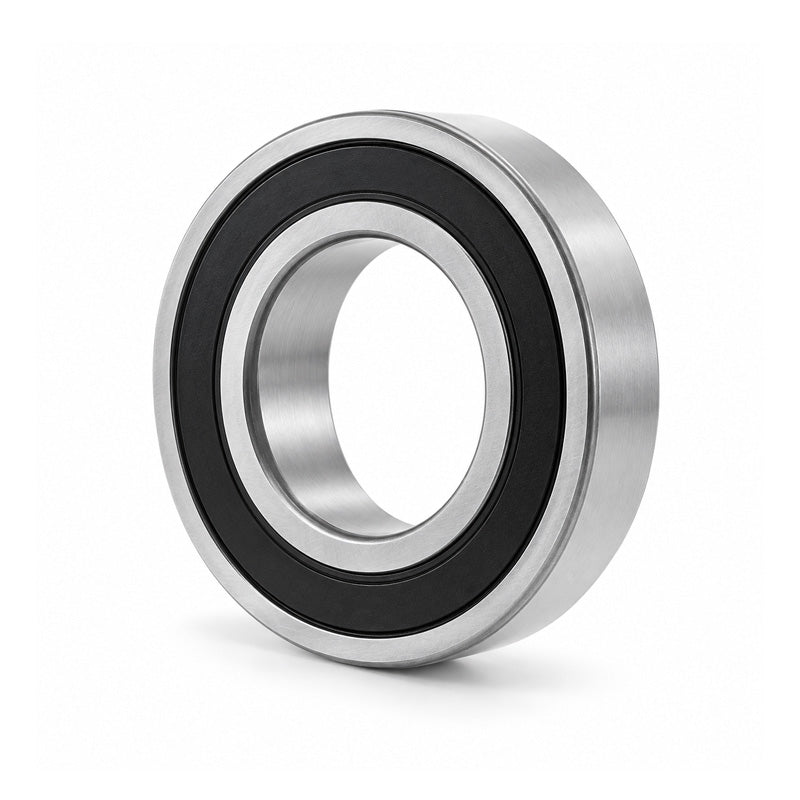

NACHI 69052NKE Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 25x42x9mm
NACHI 69052NKE Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 25x42x9mm
Equivalent to: 6905NKE 619052NKE 61905NKE
Out of stock
Description
Description
|
NACHI Non-contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two non-contact rubber seals to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation, good grease sealing, good protection against dust, low friction. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 9mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 25mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 9mm |
| Min radius r | 0.3mm |
| Dynamic load | 7000 kN |
| Static load | 4500 kN |
| Max speed | 16000 rpm |
| da min | 27mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Weight | 0.042 kg |
