SKU: 6904-ZZE-NACHI

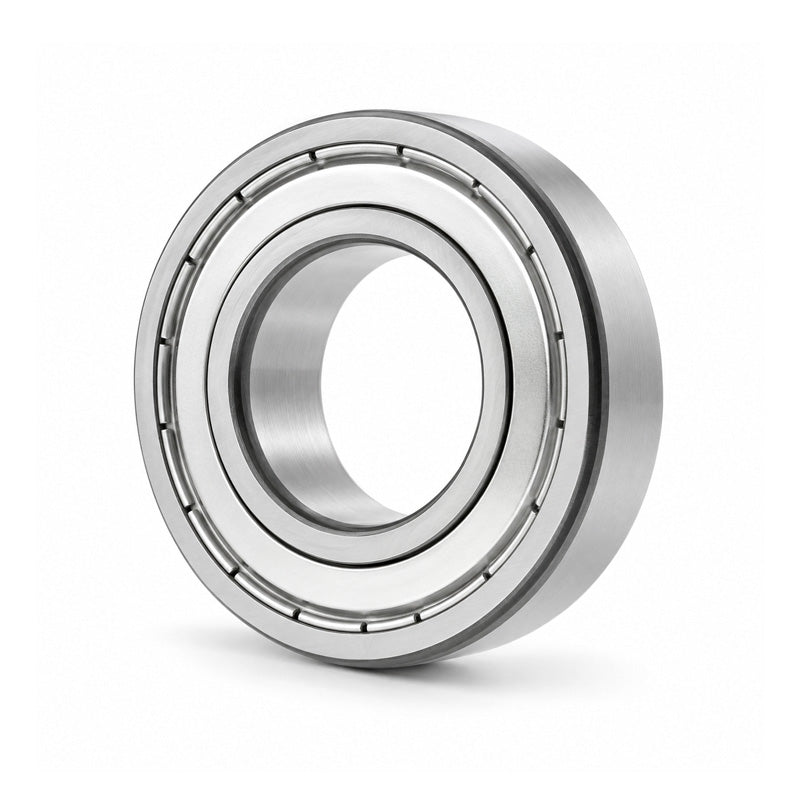

NACHI 6904ZZE Thin Section Metal Shielded Deep Groove Ball Bearing 20x37x9mm
NACHI 6904ZZE Thin Section Metal Shielded Deep Groove Ball Bearing 20x37x9mm
Equivalent to: 6904ZZ 69042Z 6904.2Z 6904KDD 6904DD 69042ZR 6904FF 61904ZZE 61904ZZ 619042Z 61904.2Z 61904KDD 61904DD 619042ZR 61904FF
Out of stock
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 37mm |
| Width B | 9mm |
| Min radius r | 0.3mm |
| Dynamic load | 6350 kN |
| Static load | 3700 kN |
| Max speed | 19000 rpm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.3mm |
| Weight | 0.036 kg |
