SKU: 6816-ZZ-NACHI

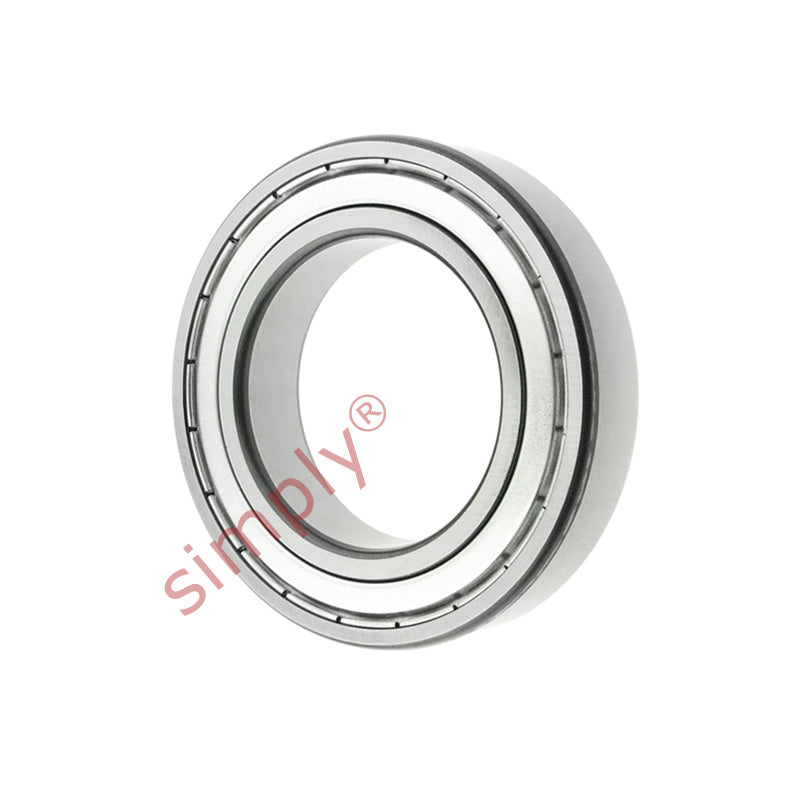

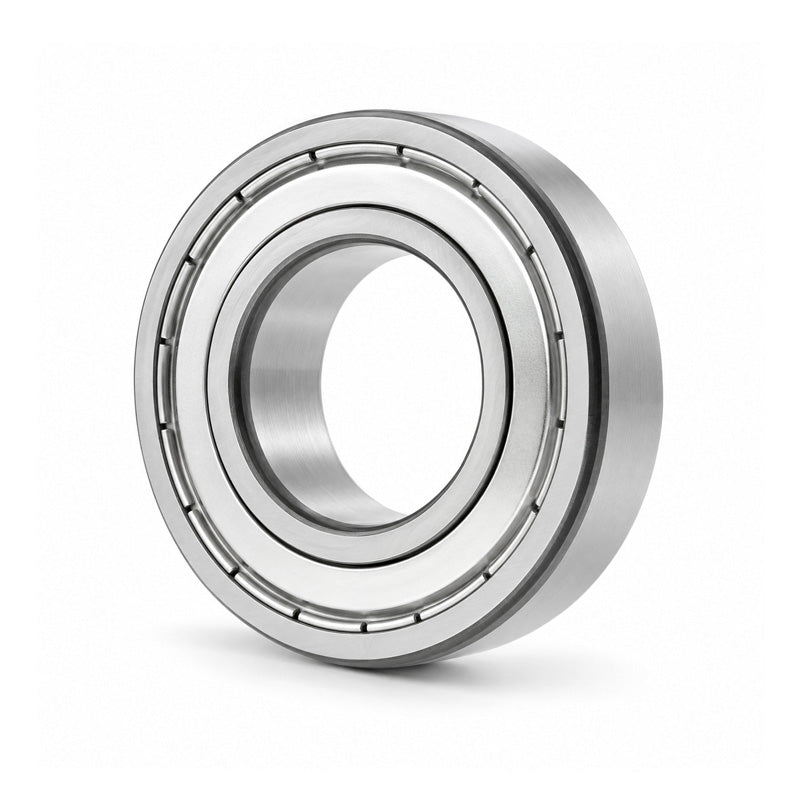

NACHI 6816ZZ Thin Section Metal Shielded Deep Groove Ball Bearing 80x100x10mm
NACHI 6816ZZ Thin Section Metal Shielded Deep Groove Ball Bearing 80x100x10mm
Equivalent to: 6816ZZE 68162Z 6816.2Z 6816KDD 6816DD 68162ZR 6816FF 61816ZZE 61816ZZ 618162Z 61816.2Z 61816KDD 61816DD 618162ZR 61816FF
Out of stock
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 100mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 80mm |
|---|---|
| Outside Diameter D | 100mm |
| Width B | 10mm |
| Min radius r | 0.6mm |
| Dynamic load | 12700 kN |
| Static load | 13300 kN |
| Max speed | 6000 rpm |
| da min | 84mm |
| Da max | 96mm |
| ra max | 0.6mm |
| Weight | 0.155 kg |
