SKU: 6814-ZZ/C3-NACHI

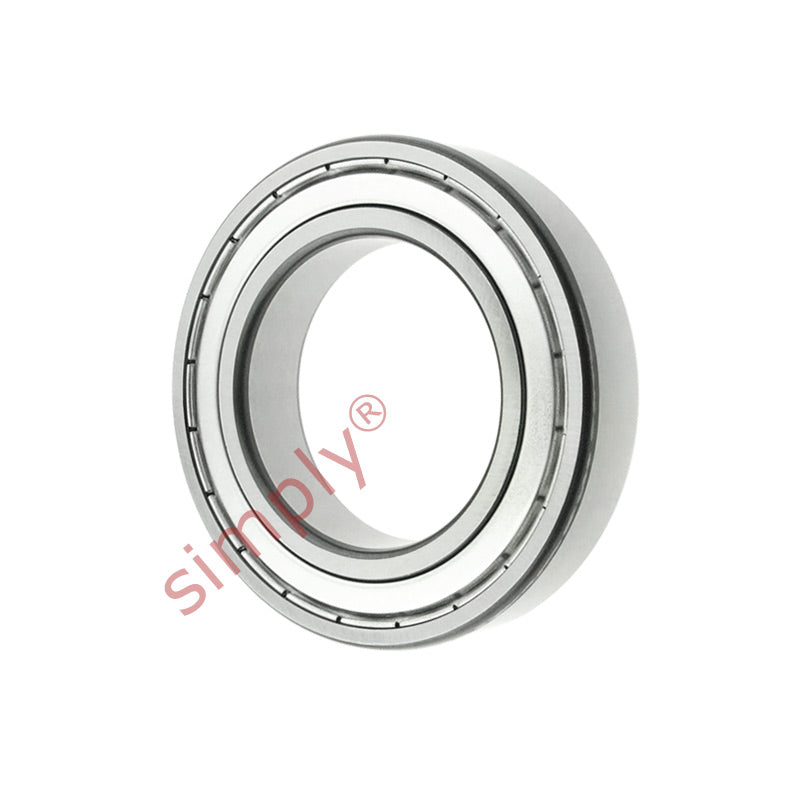

NACHI 6814ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 70x90x10mm
NACHI 6814ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 70x90x10mm
Equivalent to: 6814ZZEC3 68142ZC3 6814.2ZC3 6814KDDC3 6814DDC3 68142ZRC3 6814FFC3 61814ZZEC3 61814ZZC3 618142ZC3 61814.2ZC3 61814KDDC3 61814DDC3 618142ZRC3 61814FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 90mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 70mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 10mm |
| Min radius r | 0.6mm |
| Dynamic load | 12100 kN |
| Static load | 11900 kN |
| Max speed | 7000 rpm |
| da min | 74mm |
| Da max | 86mm |
| ra max | 0.6mm |
| Weight | 0.135 kg |
