SKU: 6810JRLLU/5K-NTN

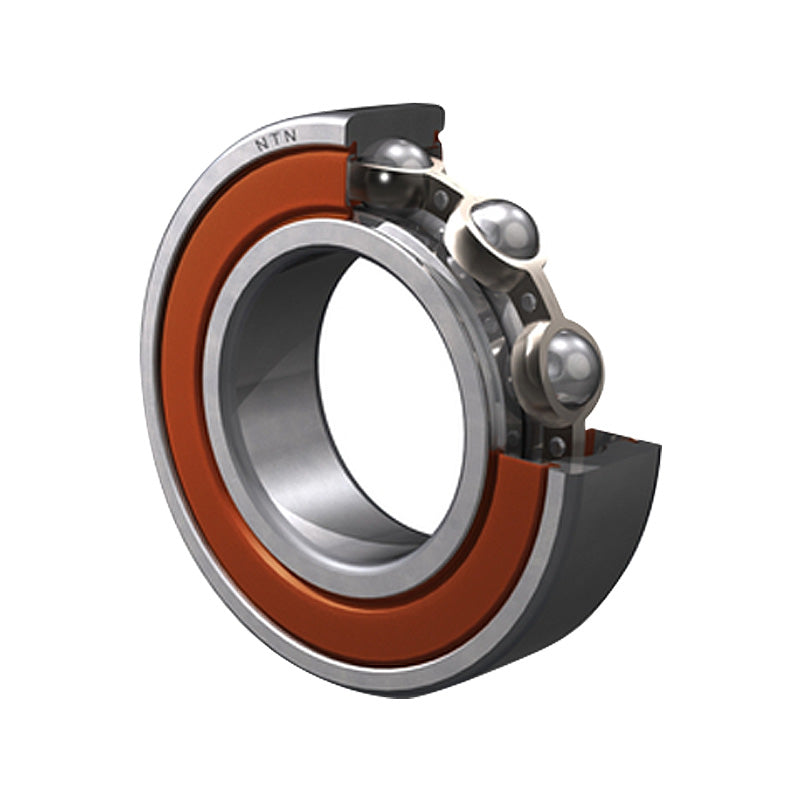

NTN 6810JRLLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 50x65x7mm
Equivalent to: 6810JRLLUCM 61810JRLLUCM 6810JRLLU 61810JRLLU 6810NSE 6810DU 6810RS 6810RSH 6810P 6810RSR 6810LU 68102NSE 6810DDU 68102RS 6810-2RS 68102RS1 68102RSH 6810PP 68102RSR 6810LLU 6810RS2 68102RS2 68102RSL 6810LFS 6810EE 1810SZZ 6810DD
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 65mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 65mm |
| B | 7mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 7.3 kN |
| C<sub>or</sub> | 6.1 kN |
| C<sub>u</sub> | 0.405 kN |
| f<sub>0</sub> | 16.1 kN |
| Speed | 5300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 52mm |
| d<sub>a</sub> Max. | 54mm |
| D<sub>a</sub> Max. | 63mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight Kg | 0.052 kg |
