SKU: 6808-ZZE/C3-NACHI

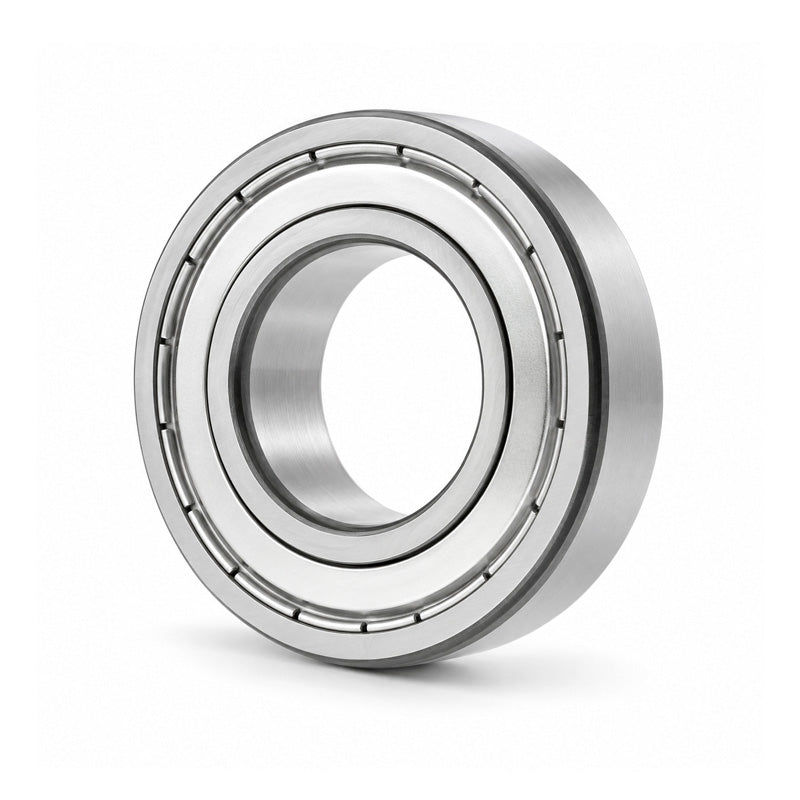

NACHI 6808ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 40x52x7mm
NACHI 6808ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 40x52x7mm
Equivalent to: 6808ZZC3 68082ZC3 6808.2ZC3 6808KDDC3 6808DDC3 68082ZRC3 6808FFC3 61808ZZEC3 61808ZZC3 618082ZC3 61808.2ZC3 61808KDDC3 61808DDC3 618082ZRC3 61808FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 52mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 5950 kN |
| Static load | 4900 kN |
| Max speed | 12000 rpm |
| da min | 42mm |
| Da max | 50mm |
| ra max | 0.3mm |
| Weight | 0.033 kg |
