SKU: 6806-ZZE/C3-NACHI

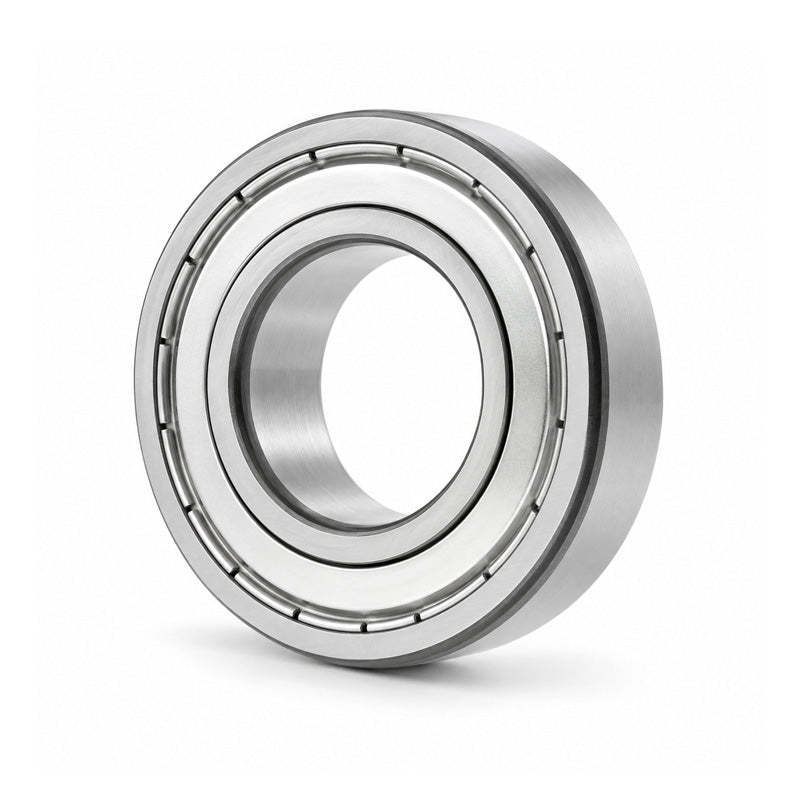

NACHI 6806ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 30x42x7mm
NACHI 6806ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 30x42x7mm
Equivalent to: 6806ZZC3 68062ZC3 6806.2ZC3 6806KDDC3 6806DDC3 68062ZRC3 6806FFC3 61806ZZEC3 61806ZZC3 618062ZC3 61806.2ZC3 61806KDDC3 61806DDC3 618062ZRC3 61806FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 5350 kN |
| Static load | 3800 kN |
| Max speed | 15000 rpm |
| da min | 32mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Weight | 0.026 kg |
