SKU: 67388/67322-SKF

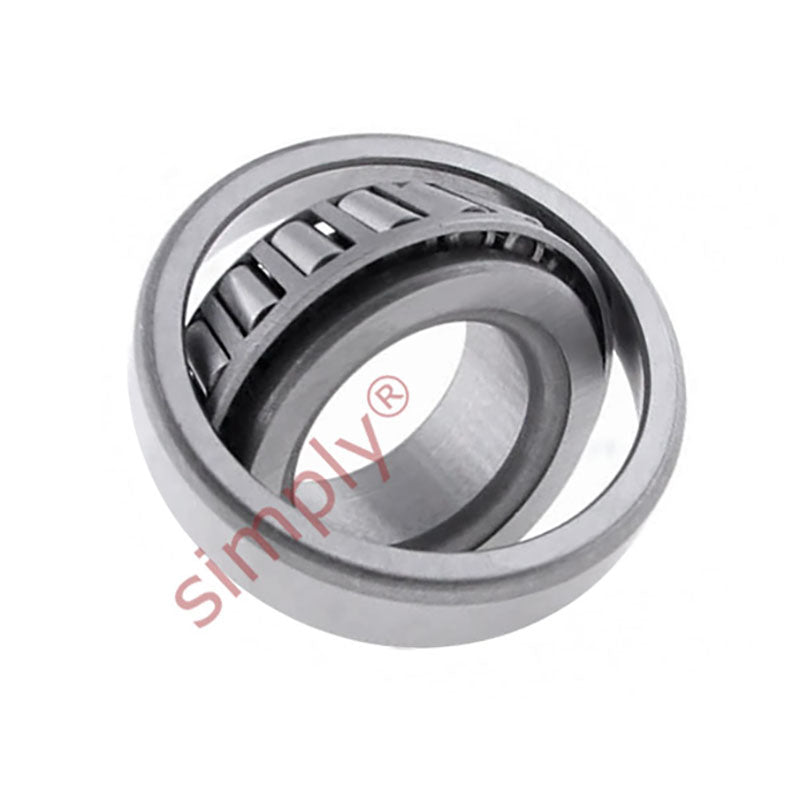

SKF 67388/67322 Imperial Taper Roller Bearing 5x7.75x1.8125 inches
SKF 67388/67322 Imperial Taper Roller Bearing 5x7.75x1.8125 inches
Out of stock
Share this product
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 127mm = 5 inch
- Outside Diameter:
- 196.85mm = 7.75 (7-3/4) inch
- Width:
- 46.04mm = 1.813 (1-13/16) inch
- Seals / Shields:
- None
Technical
Technical
| d | 127mm |
|---|---|
| D | 196.85mm |
| T | 46.038mm |
| Dynamic load | 319 kN |
| Static load | 585 kN |
| Fatigue load limit Pu | 60 kN |
| Reference speed | 2200 rpm |
| Limiting speed | 3400 rpm |
| Weight | 5.2 kg |
| d1 | 164mm |
| B | 46.038mm |
| C | 38.1mm |
| r1r2 min | 3.5mm |
| r3r4 min | 3.3mm |
| a | 39mm |
| da max | 146mm |
| db min | 140mm |
| Da min | 177mm |
| Da max | 185mm |
| Db min | 189mm |
| Ca min | 7mm |
| Cb min | 7.5mm |
| ra max | 3mm |
| rb max | 3mm |
| Calculation factor e | 0.35 |
| Calculation factor Y | 1.7 |
| Calculation factor Y0 | 0.9 |
