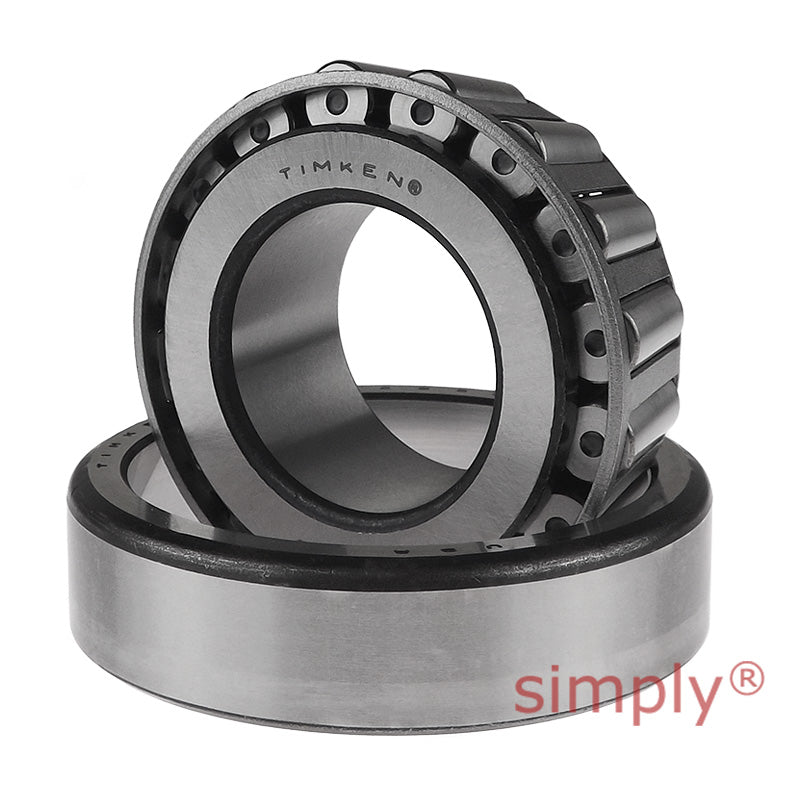

• Timken 64452X/64701X TS Single-Row Taper Roller Bearing 4.5276x7.0079x1.5748 inch
1 1

SKU: 64452X/64701X-TIM

Timken 64452X/64701X TS Single-Row Taper Roller Bearing 4.5276x7.0079x1.5748 inch

Timken 64452X/64701X TS Single-Row Taper Roller Bearing 4.5276x7.0079x1.5748 inch
CHF 339.00 ex VAT
CHF 339.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 270.66
20+ CHF 255.45
30+ CHF 252.41
40+ CHF 249.37
50+ CHF 246.33
75+ CHF 243.29
100+ CHF 228.08
200+ CHF 225.04
250+ CHF 222.00
500+ CHF 218.96
1000+ CHF 212.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
115mm = 4.528 inch
Outside Diameter:
178mm = 7.008 inch
Width:
40mm = 1.575 inch
Technical
d 115mm = 4.5276 inch
D 178mm = 7.0079 inch
T 40mm = 1.5748 inch
Dynamic (1) C1 254000N
Factors (5) e 0.52
Factors (5) Y 1.16
Dynamic (2) C90 65900N
Dynamic (2) Ca90 58300N
Factors (5) K 1.13
Static C0 419000N
Bearing B 40mm = 1.5748 inch
Bearing C 30.162mm = 1.1875 inch
Bearing a(3) 1.3mm = 0.05 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 125.5mm = 4.95 inch
Shaft backing shoulder diameter db 132mm = 5.2 inch
Housing backing shoulder diameter r(4) 3mm = 0.12 inch
Housing backing shoulder diameter Da 172mm = 6.77 inch
Housing backing shoulder diameter Db 160mm = 6.3 inch
Cage Aa 4mm = 0.16 inch
Cage Ab 2mm = 0.08 inch
G1 219
G2 45.3
Cg 0.1153
