SKU: 6413-NR-FAG

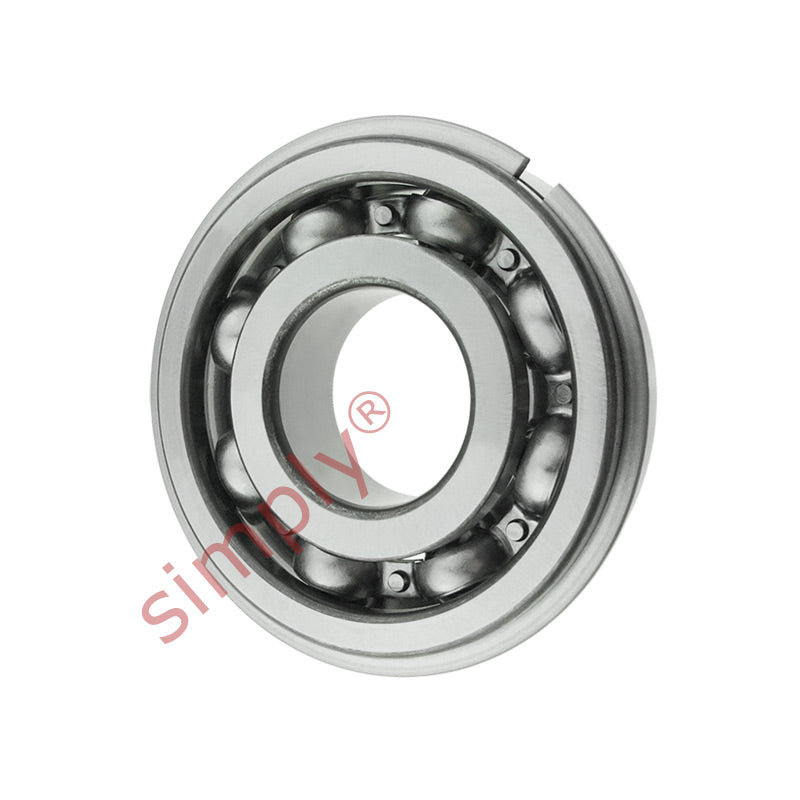

FAG 6413NR Deep Groove Ball Bearing with Snap Ring 65x160x37mm
FAG 6413NR Deep Groove Ball Bearing with Snap Ring 65x160x37mm
Regular price
CHF 370.00
ex VAT
Regular price
Sale price
CHF 370.00
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dyamic load C | 119 kN |
| Static load Co | 78 kN |
| Fatigue load limit Pu | 3.15 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6000 rpm |
| Mass | 3.3 kg |
| d1 | 94mm |
| d2 | 131mm |
| r1r2 min | 2.1mm |
| da min | 79 |
