SKU: 6332-M/C4-FAG

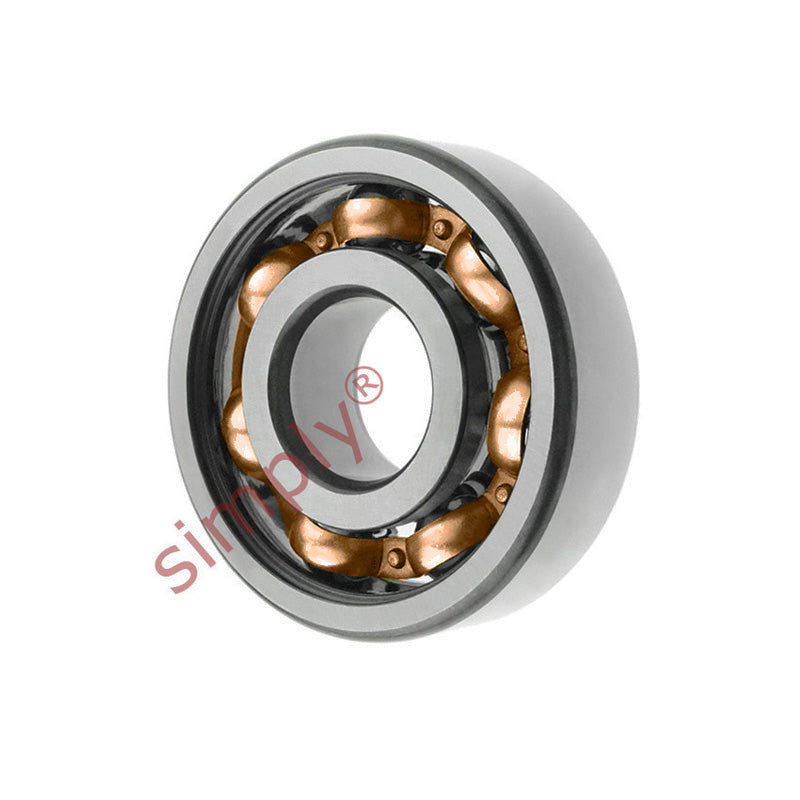

FAG 6332M/C4 Open Deep Groove Ball Bearing with Brass Cage 160x340x68mm
FAG 6332M/C4 Open Deep Groove Ball Bearing with Brass Cage 160x340x68mm
Regular price
CHF 1,083.00
ex VAT
Regular price
Sale price
CHF 1,083.00
ex VAT
In stock
Price Break
10+
CHF 866.71
19+
CHF 818.02
29+
CHF 808.28
39+
CHF 798.54
49+
CHF 788.80
74+
CHF 779.06
99+
CHF 730.37
199+
CHF 720.63
249+
CHF 710.90
499+
CHF 701.16
999+
CHF 681.68
Quantity
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 340mm
- Width:
- 68mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical

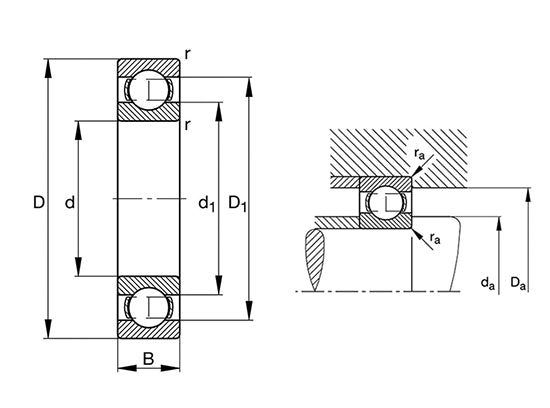

| Inside Diameter | 160mm |
|---|---|
| Outside Diameter | 340mm |
| Width | 68mm |
| Cage Type | Solid Brass Cage |
| D1 | 282.8mm |
| d1 | 219mm |
| Da max | 323mm |
| da min | 177mm |
| ra max | 3mm |
| r min | 4mm |
| Dynamic Load Rating | 300000 N |
| Static Load Rating | 320000 |
| Fatigue limit load radial | 14400 N |
| Limiting Speed | 3400 1/min |
| Reference Speed | 2800 1/min |
| Calculation Factor | 13.8 |
