SKU: 6320LLU/2AS-NTN

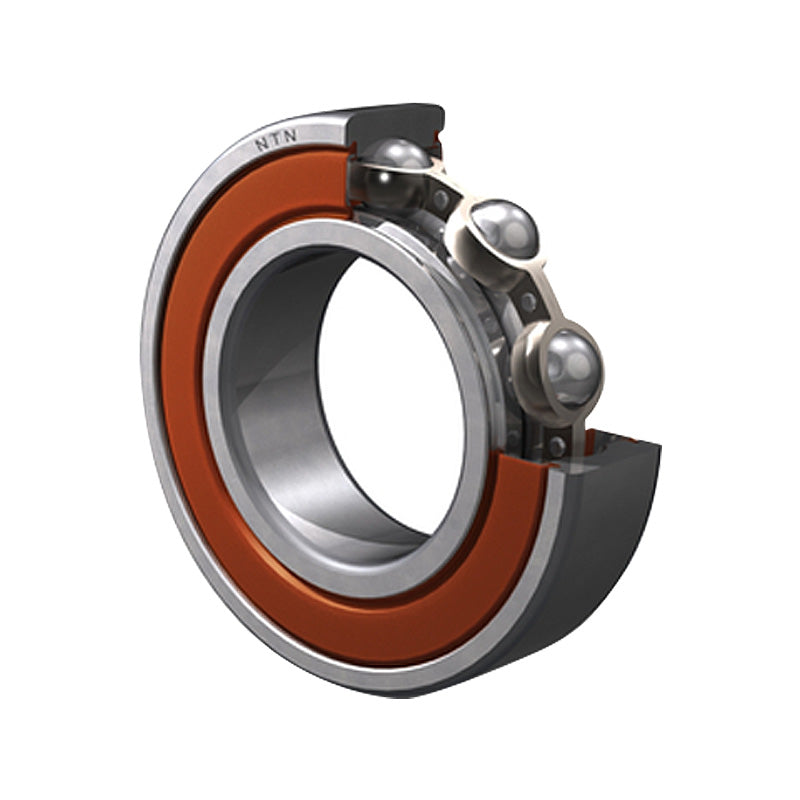

NTN 6320LLU/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 100x215x47mm
Equivalent to: 6320LLUCM 6320LLU 6320NSE 6320DU 6320RS 6320RSH 6320P 6320RSR 6320LU 63202NSE 6320DDU 63202RS 6320-2RS 63202RS1 63202RSH 6320PP 63202RSR 6320LLU 6320RS2 63202RS2 63202RSL 6320LFS 6320EE 320P 320SZ Z9620 1320R
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 47mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 215mm |
| B | 47mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 192 kN |
| C<sub>or</sub> | 141 kN |
| C<sub>u</sub> | 8.75 kN |
| f<sub>0</sub> | 13.2 kN |
| Speed | 2200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 113mm |
| d<sub>a</sub> Max. | 133mm |
| D<sub>a</sub> Max. | 202mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight Kg | 7 kg |
