SKU: 6313LUC3-NTN

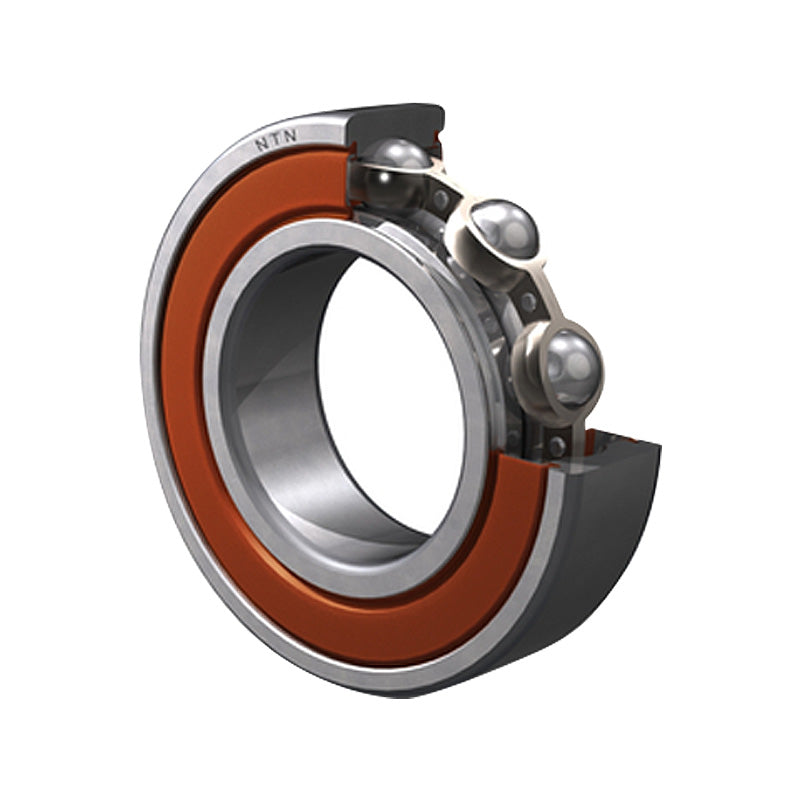

NTN 6313LUC3 One Contact Rubber Seal Type Deep Groove Ball Bearing 65x140x33mm
NTN 6313LUC3 One Contact Rubber Seal Type Deep Groove Ball Bearing 65x140x33mm
Regular price
CHF 92.00
ex VAT
Regular price
Sale price
CHF 92.00
ex VAT
In stock
Price Break
3+
CHF 73.04
5+
CHF 68.94
10+
CHF 68.12
25+
CHF 67.30
49+
CHF 66.48
74+
CHF 65.66
99+
CHF 61.55
199+
CHF 60.73
249+
CHF 59.91
499+
CHF 59.09
999+
CHF 57.45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
This bearing has one sided rubber sealed and one open side.
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- Open and Rubber Sealed
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 140mm |
| B | 33mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 103 Kn |
| C<sub>or</sub> | 60 kN |
| C<sub>u</sub> | 4.6 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 3300 rpm |
| --- | Fitting Dimensions |
| Oil | 76 rpm |
| d<sub>a</sub> Min. | 86mm |
| D<sub>a</sub> Max. | 129mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 2.08 kg |
