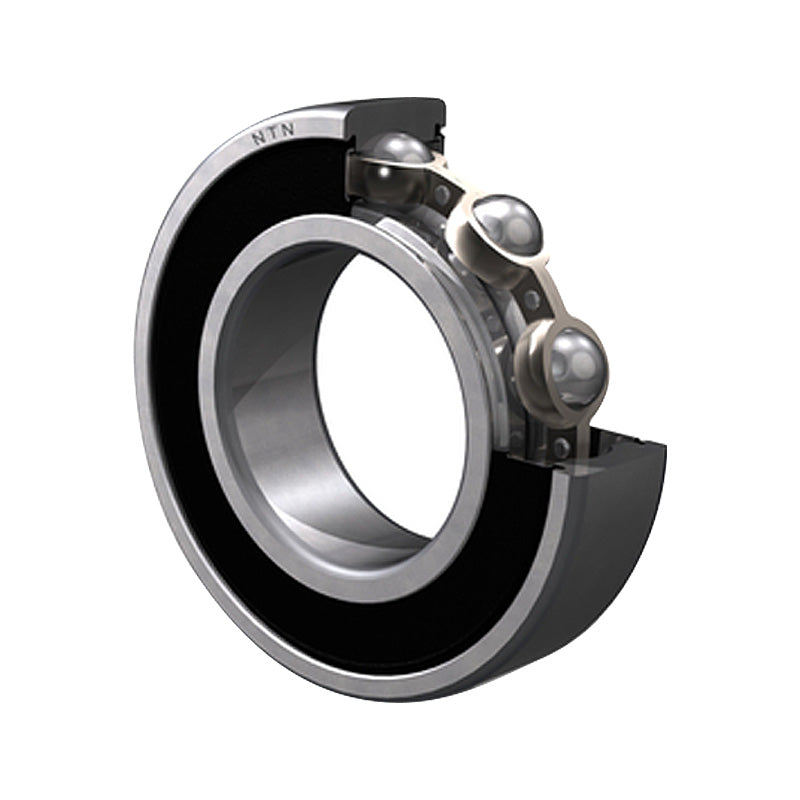

NTN 6313LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 65x140x33mm
NTN 6313LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 65x140x33mm
Regular price
CHF 77.00
ex VAT
Regular price
Sale price
CHF 77.00
ex VAT
Equivalent to: 6313LLBCM 63132NKE 6313VV 63132RSL 63132RZ
In stock
Price Break
3+
CHF 61.56
5+
CHF 58.10
10+
CHF 57.41
25+
CHF 56.72
49+
CHF 56.03
74+
CHF 55.34
99+
CHF 51.88
199+
CHF 51.19
249+
CHF 50.49
499+
CHF 49.80
999+
CHF 48.42
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 140mm |
| B | 33mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 103 kN |
| C<sub>or</sub> | 60 kN |
| C<sub>u</sub> | 4.6 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 4900 rpm |
| Oil | 5800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 76mm |
| d<sub>a</sub> Max. | 86mm |
| D<sub>a</sub> Max. | 129mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 2.08 kg |
