SKU: 6312-NR-C3-FAG

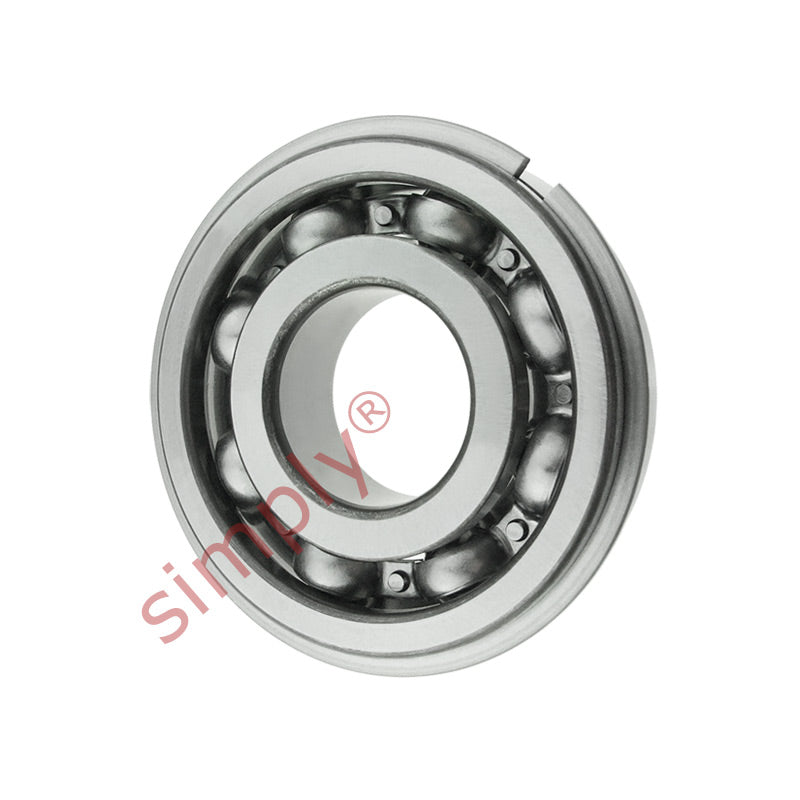

FAG 6312NRC3 Deep Groove Ball Bearing with Snap Ring 60x130x31mm
FAG 6312NRC3 Deep Groove Ball Bearing with Snap Ring 60x130x31mm
Regular price
CHF 222.00
ex VAT
Regular price
Sale price
CHF 222.00
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- C3

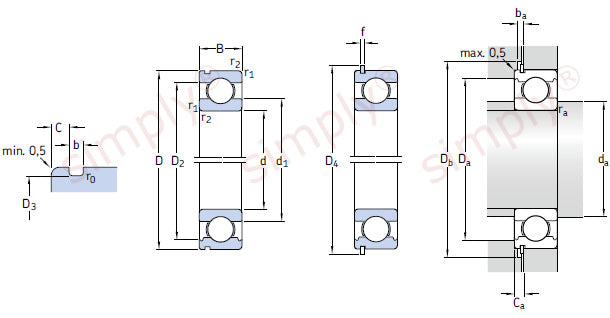

Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dyamic load C | 85.2 kN |
| Static load Co | 52 kN |
| Fatigue load limit Pu | 2.2 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 7000 rpm |
| Mass | 1.7 kg |
| d1 | 81.9mm |
| d2 | 108mm |
| D2 | 112mm |
| r1r2 min | 2.1mm |
| da min | 72 |
