SKU: 6309-2RS2-C3-NKE

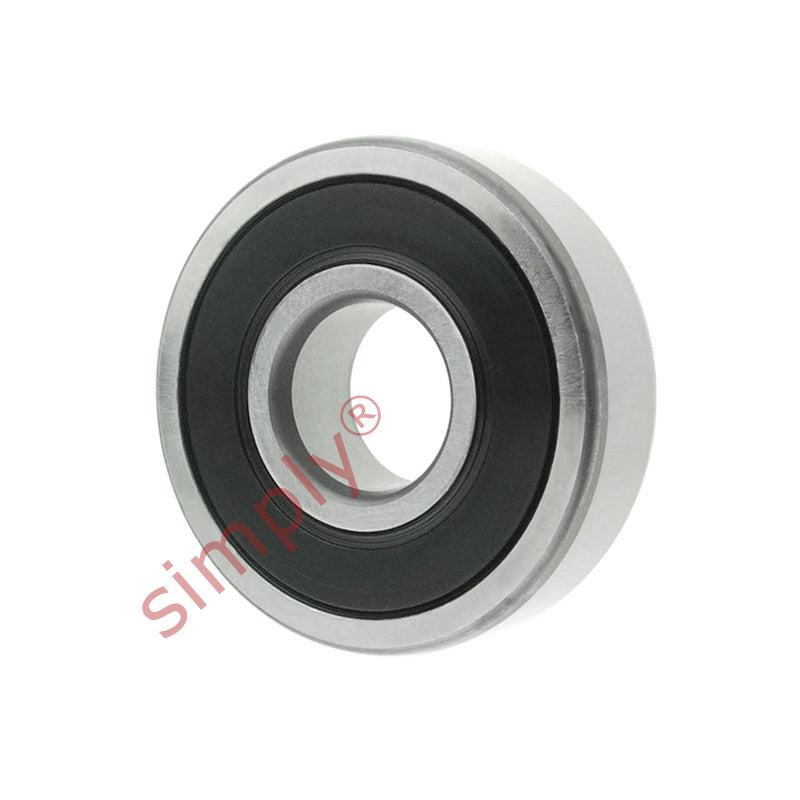

NKE 63092RS2C3 Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
Equivalent to: 6309NSEC3 6309DUC3 6309RSC3 6309RSHC3 6309PC3 6309RSRC3 6309LUC3 63092NSEC3 6309DDUC3 63092RSC3 63092RSHC3 6309PPC3 63092RSRC3 6309LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 55.3 kN |
| Static load Co | 31.5 kN |
| Fatigue load limit Pu | 1.34 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 0.83 kg |
| d1 | 62.2mm |
| D2 | 86.7mm |
| r1r2 min | 1.5mm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
