SKU: 6308LLUC4/2AS-NTN

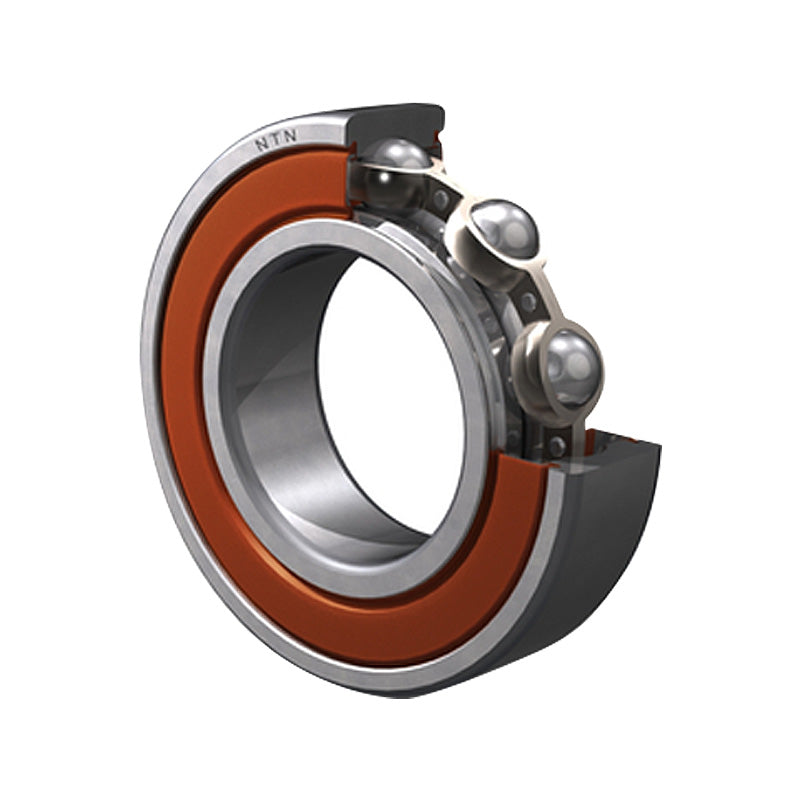

NTN 6308LLUC4/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 40x90x23mm
Equivalent to: 6308NSEC4 6308DUC4 6308RSC4 6308RSHC4 6308PC4 6308RSRC4 6308LUC4 63082NSEC4 6308DDUC4 63082RSC4 6308-2RSC4 63082RS1C4 63082RSHC4 6308PPC4 63082RSRC4 6308LLUC4 6308RS2C4 63082RS2C4 63082RSLC4 6308LFSC4 6308EEC4 308PC4 308SZC4 Z9608C4 1308RC4
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 90mm |
| B | 23mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 45 kN |
| C<sub>or</sub> | 24 kN |
| C<sub>u</sub> | 1.83 kN |
| f<sub>0</sub> | 13.2 kN |
| Speed | 5300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 48mm |
| d<sub>a</sub> Max. | 54mm |
| D<sub>a</sub> Max. | 82mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight Kg | 0.63 kg |
