SKU: 6307-2NSE-NACHI

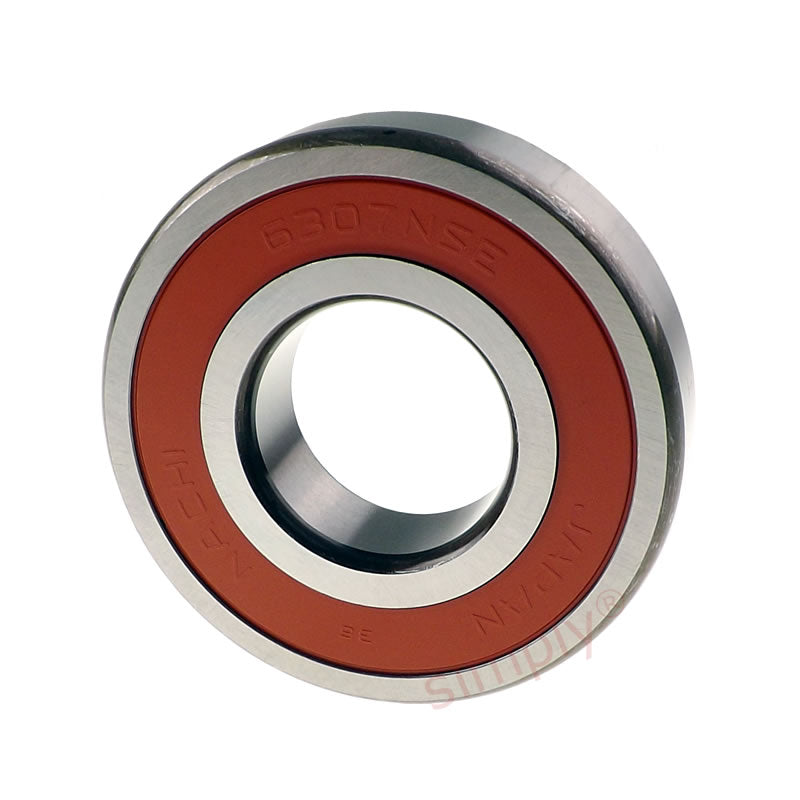

NACHI 63072NSE Contact Rubber Sealed Deep Groove Ball Bearing 35x80x21mm
NACHI 63072NSE Contact Rubber Sealed Deep Groove Ball Bearing 35x80x21mm
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
Equivalent to: 6307NSE 6307DU 6307RS 6307RSH 6307P 6307RSR 6307LU 6307DDU 63072RS 63072RS1 63072RSH 6307PP 63072RSR 63072RSR
In stock
Price Break
5+
CHF 18.30
9+
CHF 17.27
19+
CHF 17.07
29+
CHF 16.86
49+
CHF 16.65
74+
CHF 16.45
99+
CHF 15.42
199+
CHF 15.22
249+
CHF 15.01
499+
CHF 14.80
999+
CHF 14.39
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical

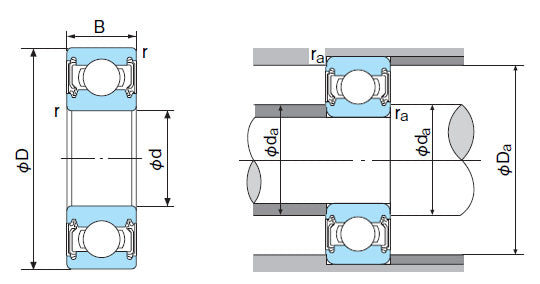

| Inside Diameter d | 35mm |
|---|---|
| Outside Diameter D | 80mm |
| Width B | 21mm |
| Min radius r | 1.5mm |
| Dynamic load | 33500 kN |
| Static load | 19200 kN |
| Max speed | 8800 rpm |
| da min | 44mm |
| Da max | 71mm |
| ra max | 1.5mm |
| Weight | 0.457 kg |
