SKU: 6304-2RSH-EU

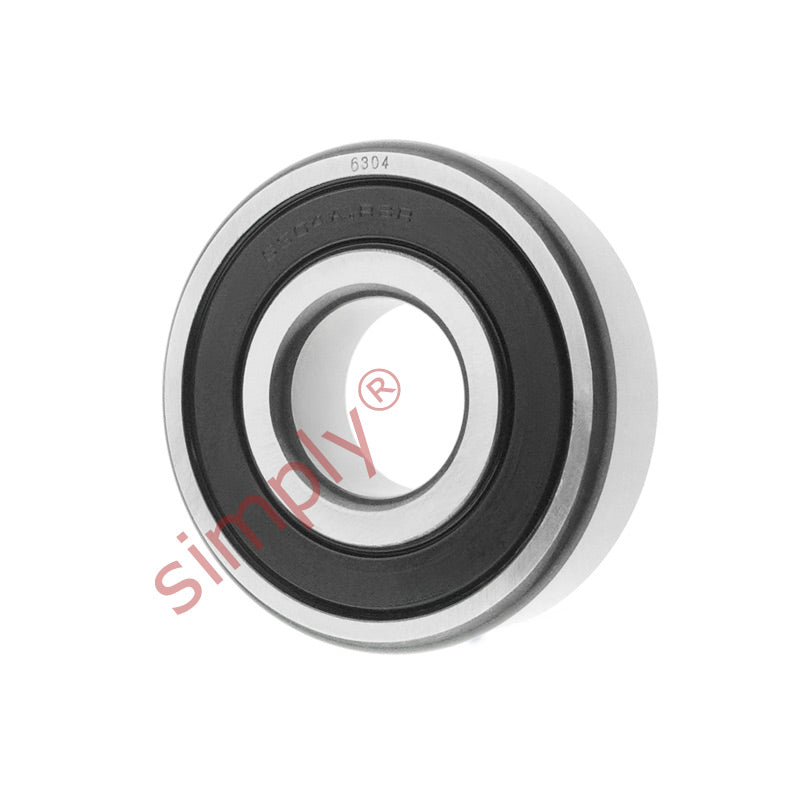

63042RS Budget Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
Equivalent to: 6304NSE 6304DU 6304RS 63042RSH 6304P 6304RSR 6304LU 63042NSE 6304DDU 63042RS 63042RS1 6304PP 63042RSR 6304LLU 63042RS2 6304RS2 63042RS1
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1.1mm |
| Dynamic load Cr | 15.9 kN |
| Static load Cor | 7.85 kN |
| Speed in grease | 14000 rpm |
| Speed in oil | 17000 rpm |
