SKU: 6302/C3-MB

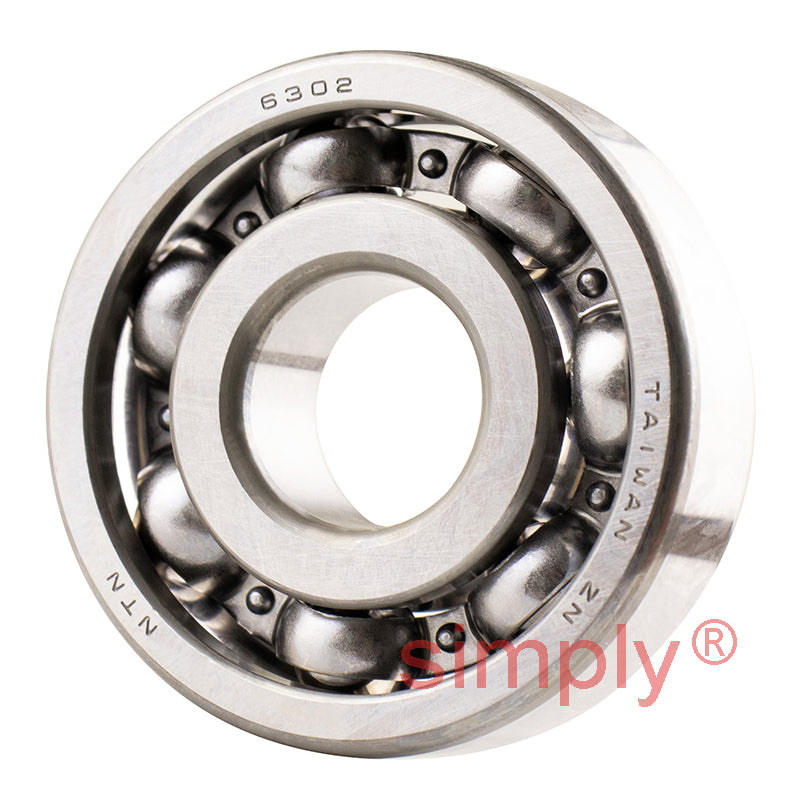

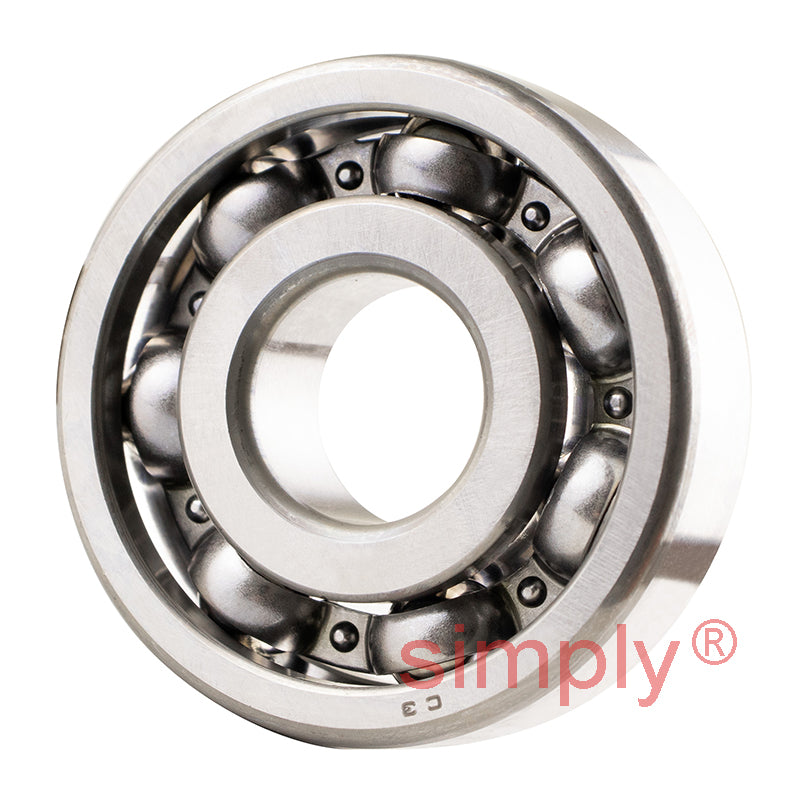

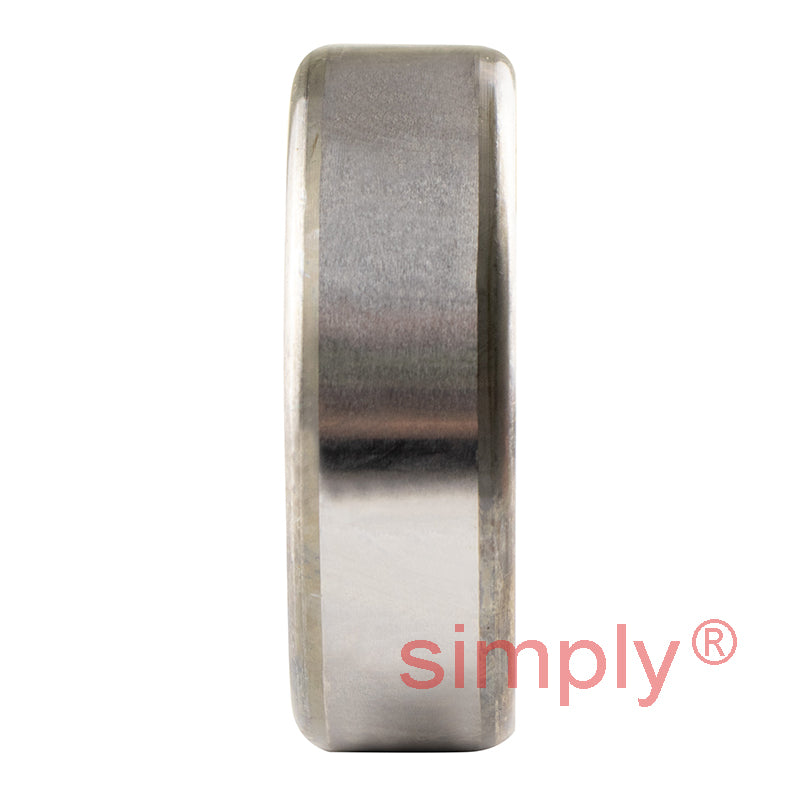

Major Branded 6302/C3 Open Deep Groove Ball Bearing 15x42x13mm
Major Branded 6302/C3 Open Deep Groove Ball Bearing 15x42x13mm
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
Equivalent to: 6302 6302C3
In stock
Price Break
10+
CHF 15.68
19+
CHF 14.80
29+
CHF 14.62
39+
CHF 14.45
49+
CHF 14.27
74+
CHF 14.09
99+
CHF 13.21
199+
CHF 13.04
249+
CHF 12.86
499+
CHF 12.68
999+
CHF 12.33
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 15mm |
|---|---|
| D | 42mm |
| B | 13mm |
| Dynamic load C | 11.9 kN |
| Static load Co | 5.4 kN |
| Fatigue load limit Pu | 0.228 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 24000 rpm |
| Mass | 0.082 kg |
| d1 | 23.7mm |
| D1 | -mm |
| D2 | 36.23mm |
| r1r2 min | 1mm |
| da min | 20.6mm |
| Da max | 36.4mm |
| ra max | 1mm |
| Calc factor Kr | 0.03 |
| Calc factor | 12 |
