SKU: 6224/C3VL0241-SKF

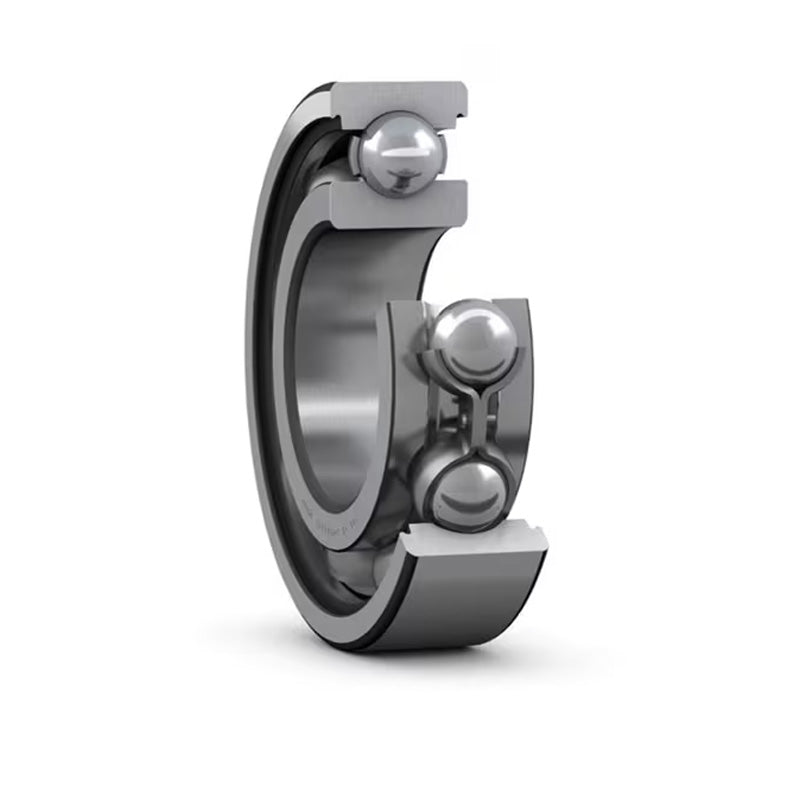

SKF 6224C3VL0241 Open Deep Groove Ball Bearing 120x215x40mm
SKF 6224C3VL0241 Open Deep Groove Ball Bearing 120x215x40mm
Regular price
CHF 2,116.00
ex VAT
Regular price
Sale price
CHF 2,116.00
ex VAT
In stock
Price Break
4+
CHF 1,693.47
10+
CHF 1,598.33
20+
CHF 1,579.30
30+
CHF 1,560.27
50+
CHF 1,541.25
75+
CHF 1,522.22
100+
CHF 1,427.08
200+
CHF 1,408.05
250+
CHF 1,389.02
500+
CHF 1,370.00
1000+
CHF 1,331.94
Quantity
Couldn't load pickup availability
Description
Description
|
Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) is applied to the bearing during manufacture to provide electrical insulation |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical

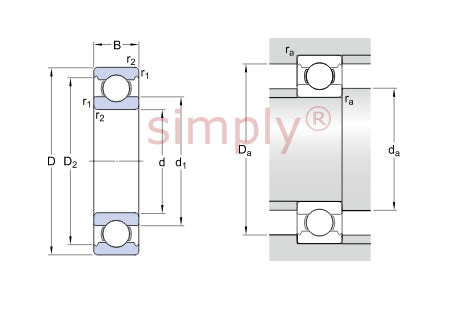

| d | 120mm |
|---|---|
| D | 215mm |
| B | 40mm |
| Dynamic load | 146 kN |
| Static load | 118 kN |
| Fatigue load limit Pu | 3.9 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 4000 rpm |
| Weight | 5.15 kg |
| d1 | 151mm |
| D1 | 184mm |
| D2 | 189mm |
| r1r2 min | 2.1mm |
| da min | 132mm |
| Da max | 203mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 14 |
