SKU: 6213L1C3-NTN

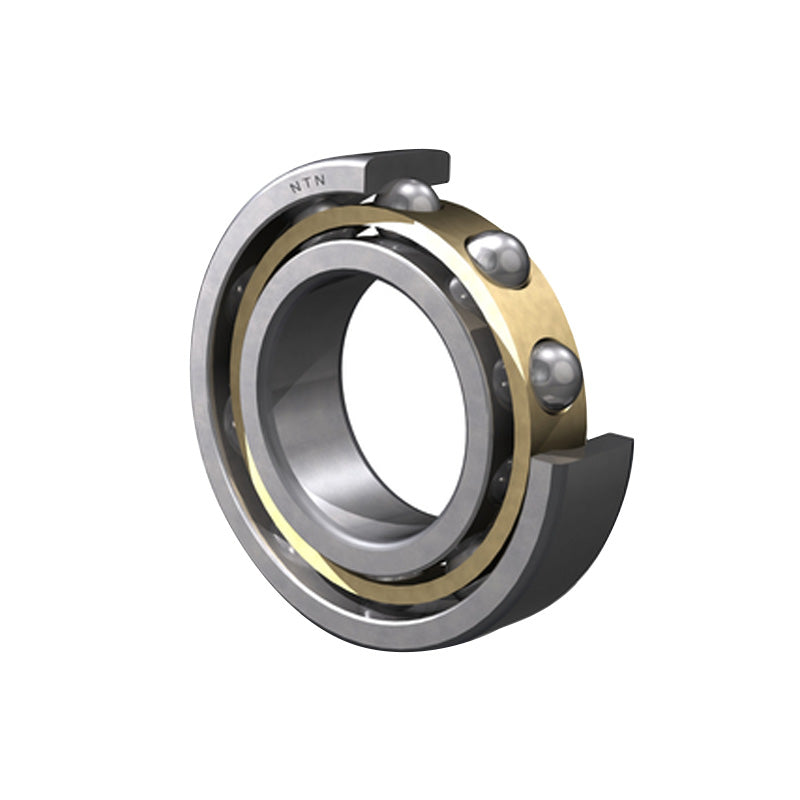

NTN 6213L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 65x120x23mm
NTN 6213L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 65x120x23mm
Regular price
CHF 86.00
ex VAT
Regular price
Sale price
CHF 86.00
ex VAT
In stock
Price Break
3+
CHF 68.48
5+
CHF 64.63
10+
CHF 63.86
25+
CHF 63.09
49+
CHF 62.32
74+
CHF 61.55
99+
CHF 57.71
199+
CHF 56.94
249+
CHF 56.17
499+
CHF 55.40
999+
CHF 53.86
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Machined Brass Cage Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Most brass cages are machined from cast or wrought brass. They are unaffected by most common bearing lubricants, including synthetic oils and greases, and can be cleaned using organic solvents.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 120mm |
| B | 23mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 63.5 Kn |
| C<sub>or</sub> | 40 kN |
| C<sub>u</sub> | 3.15 kN |
| f<sub>0</sub> | 14.4 kN |
| Grease | 5500 rpm |
| Oil | 6500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 73mm |
| D<sub>a</sub> Max. | 112mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.99 kg |
