SKU: 6207NR-NSK
NSK 6207NR Open Type Deep Groove Ball Bearing With Snap Ring 35x72x17mm
NSK 6207NR Open Type Deep Groove Ball Bearing With Snap Ring 35x72x17mm
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
4+
CHF 23.90
10+
CHF 22.56
20+
CHF 22.29
30+
CHF 22.02
50+
CHF 21.75
75+
CHF 21.49
100+
CHF 20.14
200+
CHF 19.87
250+
CHF 19.61
500+
CHF 19.34
1000+
CHF 18.80
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical

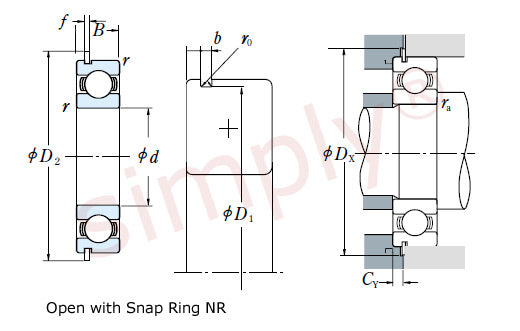

| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| r min | 1.1mm |
| Dynamic load Cr | 25700 N (2620 kgf) |
| Static load Cor | 15300 N (1560 kgf) |
| Factor | 13.8 |
| Speed in grease | 9500 rpm |
| Speed in oil | 11000 rpm |
| a max | 3.28mm |
| b min | 1.9mm |
| D1 max | 68.81mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 78.6mm |
| f max | 1.7mm |
| da2 min | 41.5mm |
| da2max | 44.5mm |
| Da2max | 65.5mm |
| ra max | 1mm |
| Dx min | 80mm |
| Cy max | 4.6mm |
| Weight | 0.284 kg |
