SKU: 6207C3-NSK
NSK 6207C3 Open Type Deep Groove Ball Bearing 35x72x17mm
NSK 6207C3 Open Type Deep Groove Ball Bearing 35x72x17mm
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
4+
CHF 9.11
10+
CHF 8.60
20+
CHF 8.50
30+
CHF 8.40
50+
CHF 8.30
75+
CHF 8.19
100+
CHF 7.68
200+
CHF 7.58
250+
CHF 7.48
500+
CHF 7.37
1000+
CHF 7.17
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical

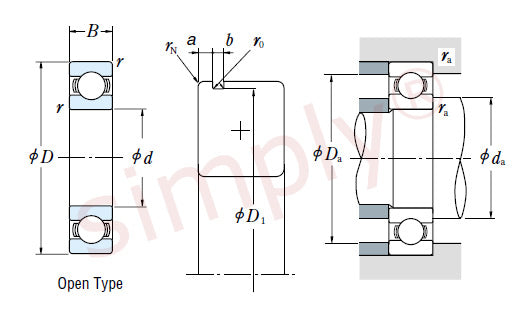

| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| r min | 1.1mm |
| Dynamic load Cr | 25700 N (2620 kgf) |
| Static load Cor | 15300 N (1560 kgf) |
| Factor | 13.8 |
| Speed in grease | 9500 rpm |
| Speed in oil | 11000 rpm |
| Mass | 0.284 kg |
