SKU: 6205NR/C3-MB

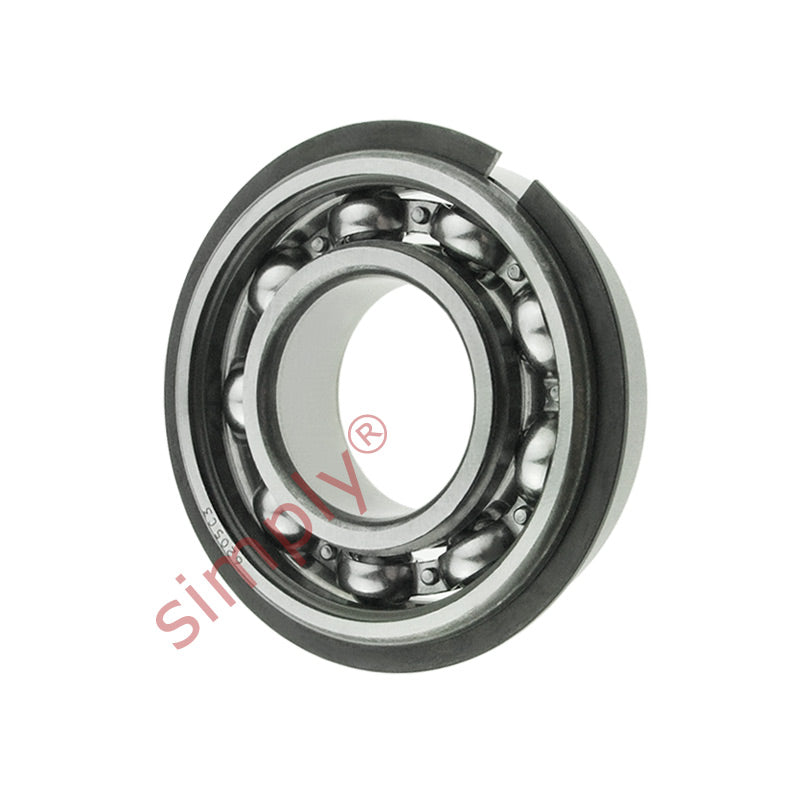

6205NRC3 Deep Groove Ball Bearing with Snap Ring 25x52x15mm
6205NRC3 Deep Groove Ball Bearing with Snap Ring 25x52x15mm
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
In stock
Price Break
10+
CHF 12.87
19+
CHF 12.15
29+
CHF 12.00
39+
CHF 11.86
49+
CHF 11.71
74+
CHF 11.57
99+
CHF 10.84
199+
CHF 10.70
249+
CHF 10.55
499+
CHF 10.41
999+
CHF 10.12
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dyamic load C | 14.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 18000 rpm |
| Mass | 0.13 kg |
| d1 | 34.4mm |
| d2 | 44mm |
| D2 | 46.3mm |
| r1r2 min | 1mm |
| da min | 30.6 |
