SKU: 6205LLBC3/5K-NTN

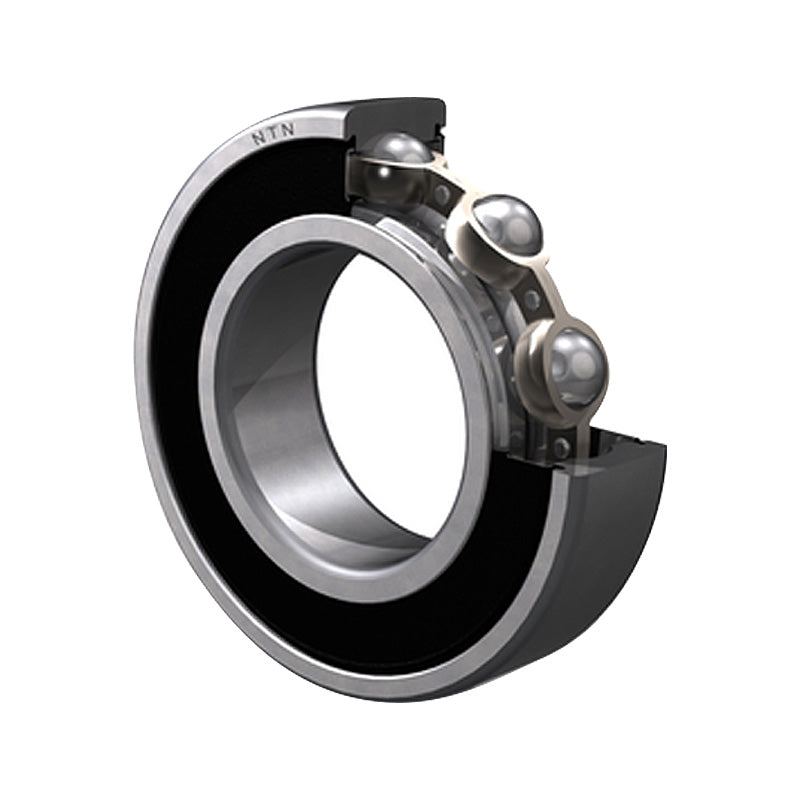

NTN 6205LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 25x52x15mm
NTN 6205LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 25x52x15mm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: 62052NKEC3 6205VVC3 62052RSLC3 62052RZC3
In stock
Price Break
3+
CHF 8.46
5+
CHF 7.98
10+
CHF 7.89
25+
CHF 7.79
49+
CHF 7.70
74+
CHF 7.60
99+
CHF 7.13
199+
CHF 7.03
249+
CHF 6.94
499+
CHF 6.84
999+
CHF 6.65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 52mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 15.5 kN |
| C<sub>or</sub> | 7.85 kN |
| C<sub>u</sub> | 0.55 kN |
| f<sub>0</sub> | 13.9 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 30mm |
| d<sub>a</sub> Max. | 32mm |
| D<sub>a</sub> Max. | 47mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.128 kg |
