SKU: 6203-2RSH-EU

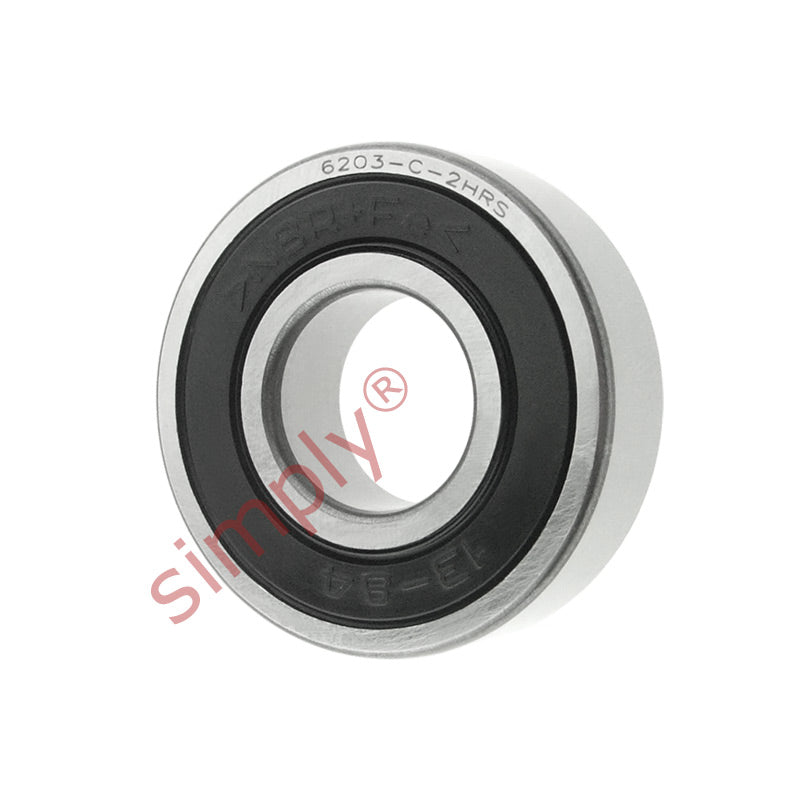

62032RS Budget Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
Equivalent to: 6203NSE 6203DU 6203RS 62032RSH 6203P 6203RSR 6203LU 62032NSE 6203DDU 62032RS 62032RS1 6203PP 62032RSR 6203LLU 62032RS2 6203RS2 62032RS1
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 9.55 kN |
| Static load Cor | 4.8 kN |
| Speed in grease | 17000 rpm |
| Speed in oil | 21000 rpm |
