SKU: 6201-2RSR/C3-FAG

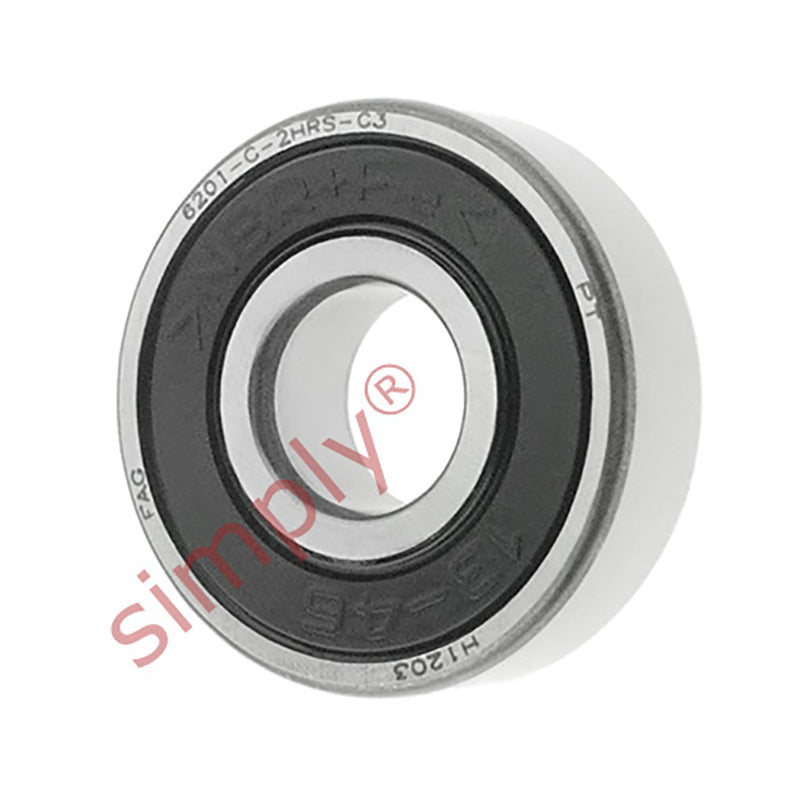

FAG 62012RSRC3 Rubber Sealed Deep Groove Ball Bearing 12x32x10mm
Equivalent to: 6201NSEC3 6201DUC3 6201RSC3 6201RSHC3 6201PC3 6201RSRC3 6201LUC3 62012NSEC3 6201DDUC3 62012RSC3 62012RS1C3 62012RSHC3 6201PPC3 6201LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 10mm |
| Dynamic load C | 7.28 kN |
| Static load Co | 3.1 kN |
| Fatigue load limit Pu | 0.132 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 15000 rpm |
| Mass | 0.037 kg |
| d1 | 18.5mm |
| D2 | 27.4mm |
| r1r2 min | 0.6mm |
| da min | 16.2 |
