SKU: 61913-2RZ/C3-SKF

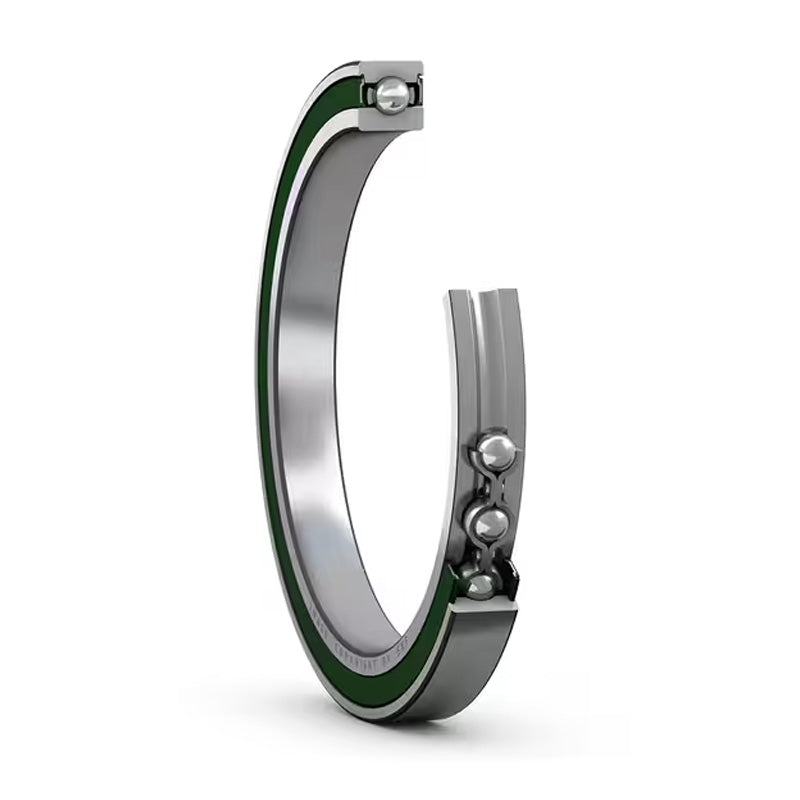

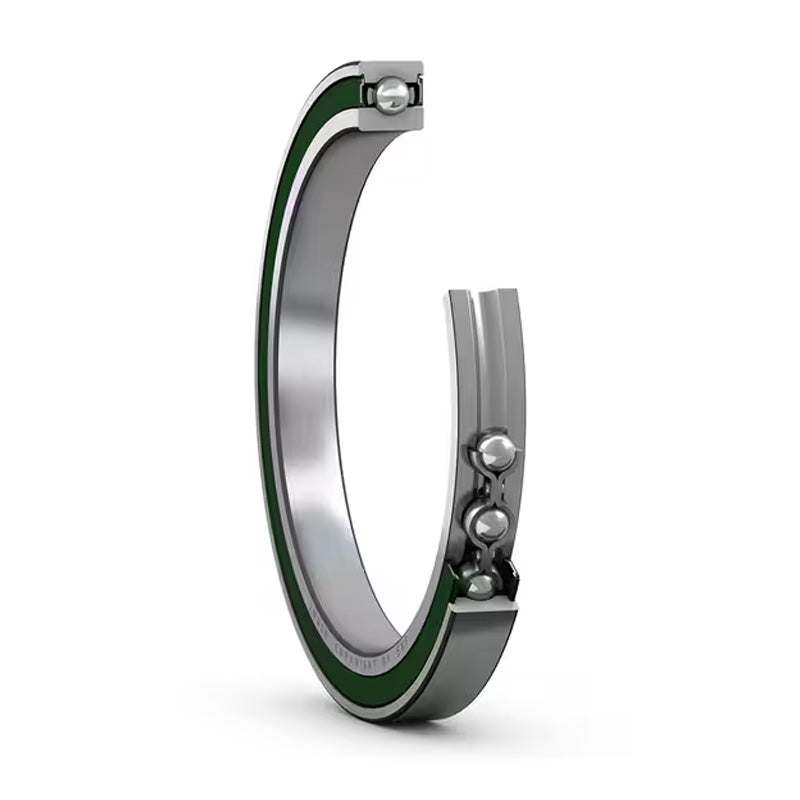

SKF 619132RZC3 Thin Section Deep Groove Ball Bearing with Two Low Friction Rubber Seals 65x90x13mm

SKF 619132RZC3 Thin Section Deep Groove Ball Bearing with Two Low Friction Rubber Seals 65x90x13mm

Equivalent to: 619132LFSC3 619132RZ

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d 65mm
D 90mm
B 13mm
Dynamic load C 17.4 kN
Static load Co 16 kN
Fatigue load limit Pu 0.68 kN
Reference speed 15000 rpm
Limiting speed 7500 rpm
Weight 0.22 kg
d1 73.2mm
D2 84.2mm
r1r2 min 1mm
da min 69.6mm
Da max 85.4mm
ra max 1mm
Calculation factor kr 0.02
Calculation factor f0 17
