SKU: 61908-2RZ-FAG

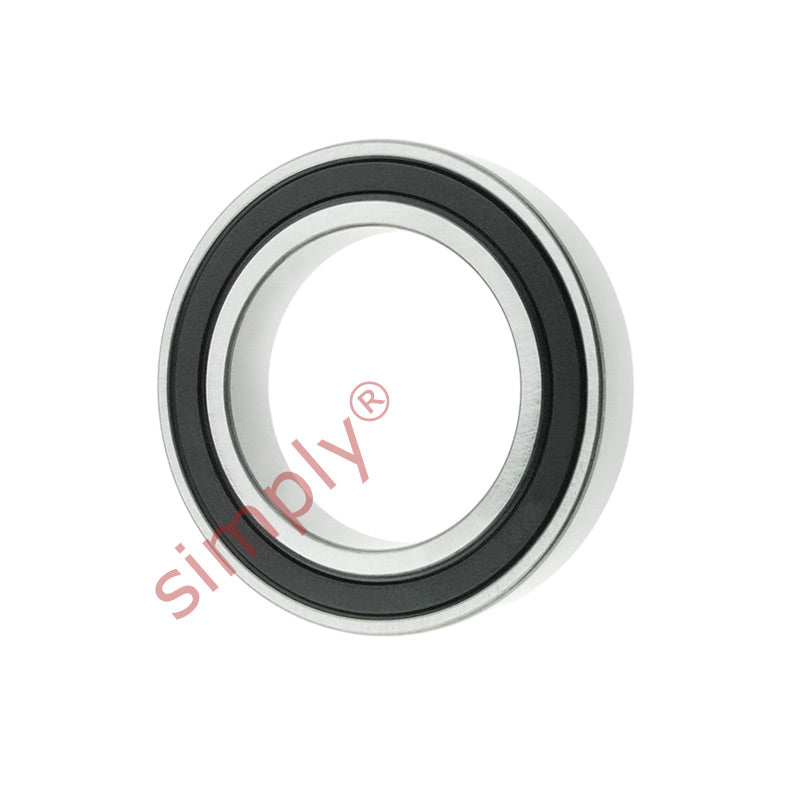

FAG 619082RZ Deep Groove Ball Bearing 2 Low Friction Seal 40x62x12mm
FAG 619082RZ Deep Groove Ball Bearing 2 Low Friction Seal 40x62x12mm
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
Equivalent to: 69082RSL 69082RD 69082LFS 6908DDW 619082RZ 619082RSL 619082RD 619082LFS 61908DDW
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 62mm |
| B | 12mm |
| Dynamic load C | 13.8 kN |
| Static load Co | 10 kN |
| Fatigue load limit Pu | 0.425 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 6700 rpm |
| Mass | 0.12 kg |
| d1 | 46.9mm |
| D2 | 57.3mm |
| r1r2 min | 0.6mm |
| da min | 43.2 |
