SKU: 61903-2Z-C3-FAG

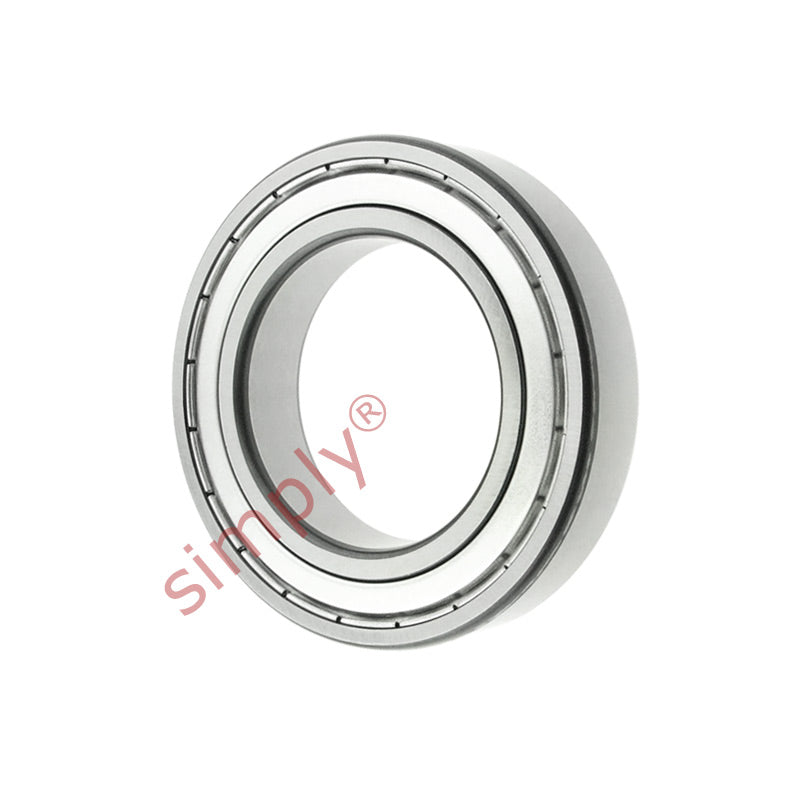

FAG 619032ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 17x30x7mm
Equivalent to: 61903ZZEC3 61903ZZC3 61903.2ZC3 61903KDDC3 61903DDC3 619032ZRC3 61903FFC3 6903ZZEC3 6903ZZC3 69032ZC3 6903.2ZC3 6903KDDC3 6903DDC3 69032ZRC3 6903FFC3
Out of stock
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 7mm |
| Dynamic load C | 4.62 kN |
| Static load Co | 2.55 kN |
| Fatigue load limit Pu | 0.108 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 26000 rpm |
| Mass | 0.018 kg |
| d1 | 20.4mm |
| D2 | 27.8mm |
| r1r2 min | 0.3mm |
| da min | 19 |
