SKU: 61.6MXL-025-77-TRANSFLEX

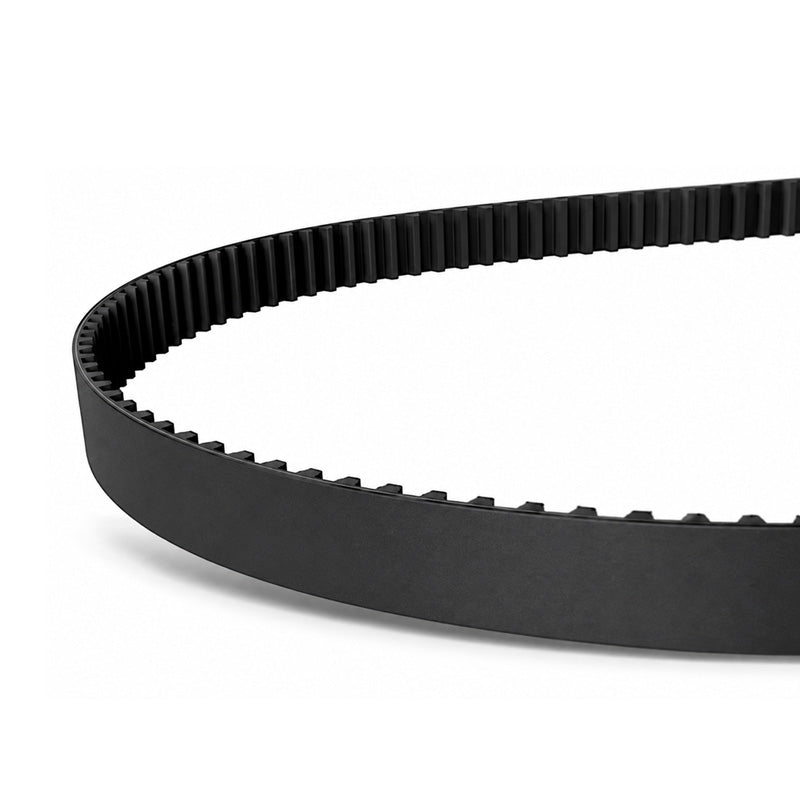

616MXL025 Transflex Synchronous Toothed Belt 0.25 inch Wide 6.16 inch Length 77 Teeth Allow 2-3 Days
616MXL025 Transflex Synchronous Toothed Belt 0.25 inch Wide 6.16 inch Length 77 Teeth Allow 2-3 Days
Regular price
CHF 3.00
ex VAT
Regular price
Sale price
CHF 3.00
ex VAT
In stock
Price Break
3+
CHF 1.83
5+
CHF 1.57
10+
CHF 1.44
15+
CHF 1.31
20+
CHF 1.05
30+
CHF 0.92
40+
CHF 0.79
50+
CHF 0.00
60+
CHF 0.00
75+
CHF 0.00
100+
CHF 0.00
Quantity
Couldn't load pickup availability
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Transflex - High Quality
- Belt Width Approx:
- 6.35mm = 1/4 inch
- Belt Depth Approx:
- 1.14mm
- Belt Length Approx:
- 156.46mm = 6.16 inch
- Number of Teeth:
- 77
Technical
Technical
| Belt width | 0.25 inch = 6.35mm |
|---|---|
| Pitch length | 6.16 inch = 156.46mm |
| Number of teeth | 77 |
| Tooth pitch t | 0.08 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.02 inch |
| Pitch zone u | 0.01 inch |
