SKU: 6019-2RS-CDX

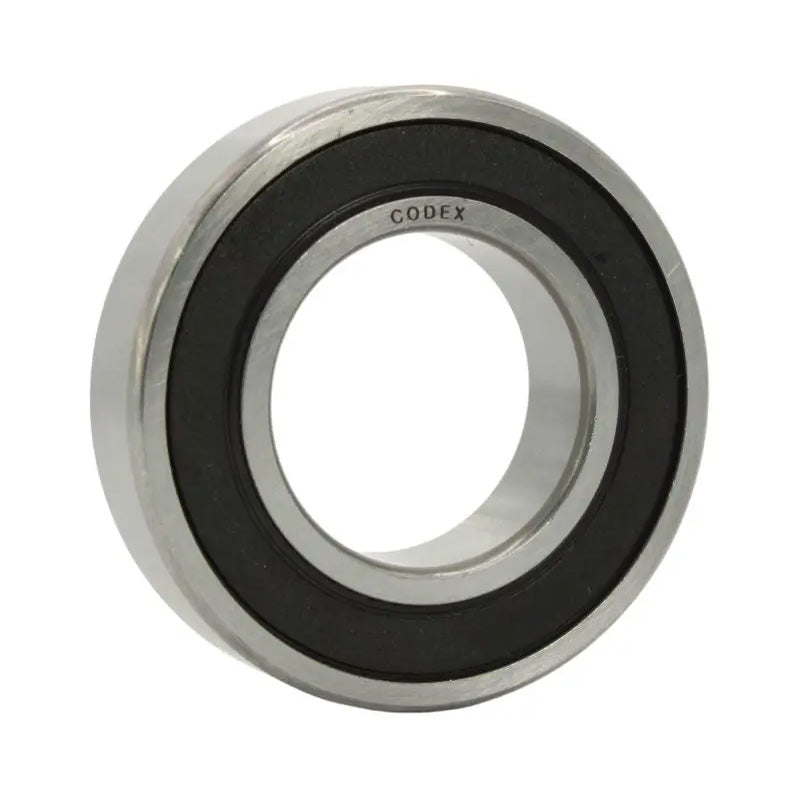

Codex 60192RS Rubber Sealed Deep Groove Ball Bearing 95x145x24mm
Codex 60192RS Rubber Sealed Deep Groove Ball Bearing 95x145x24mm
Regular price
CHF 53.00
ex VAT
Regular price
Sale price
CHF 53.00
ex VAT
Equivalent to: 60192RS 60192RSH 60192RS1 60192RSR 60192RSL 6019LFS 6019EE 6019DU 6019LLU EL952RS 6019PP
In stock
Price Break
4+
CHF 42.31
10+
CHF 39.94
20+
CHF 39.46
30+
CHF 38.98
50+
CHF 38.51
75+
CHF 38.03
100+
CHF 35.66
200+
CHF 35.18
250+
CHF 34.71
500+
CHF 34.23
1000+
CHF 33.28
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 145mm
- Width:
- 24mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 145mm |
| B | 24mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 54 kN |
| Fatigue load limit Pu | 2.08 |
| Reference speed | 9500 rpm |
| Limiting speed | 2800 rpm |
| Weight | 1.2 kg |
| d1 | 110mm |
| D2 | 133mm |
| r1r2 | 1.5mm |
| da min | 102mm |
| Da max | 138mm |
| ra max | 1.5mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 16 |
