SKU: 6011-ZZE-NACHI
NACHI 6011ZZE Metal Shielded Deep Groove Ball Bearing 55x90x18mm
NACHI 6011ZZE Metal Shielded Deep Groove Ball Bearing 55x90x18mm
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
Equivalent to: 6011ZZ 60112Z 6011.2Z 6011KDD 6011DD 60112ZR 6011FF
In stock
Price Break
5+
CHF 20.78
9+
CHF 19.61
19+
CHF 19.38
29+
CHF 19.14
49+
CHF 18.91
74+
CHF 18.68
99+
CHF 17.51
199+
CHF 17.28
249+
CHF 17.04
499+
CHF 16.81
999+
CHF 16.34
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard

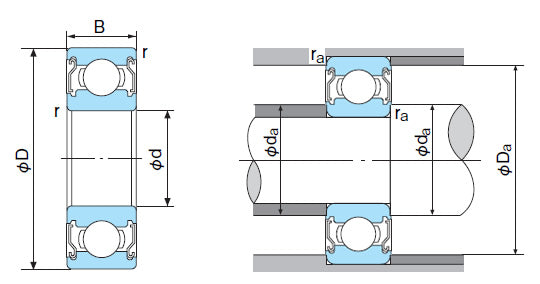

Technical
Technical
| Inside Diameter d | 55mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 18mm |
| Min radius r | 1.1mm |
| Dynamic load | 28300 kN |
| Static load | 21300 kN |
| Max speed | 7700 rpm |
| da min | 61mm |
| Da max | 84mm |
| ra max | 1mm |
| Weight | 0.384 kg |
