SKU: 6011-2Z/C3-KOY

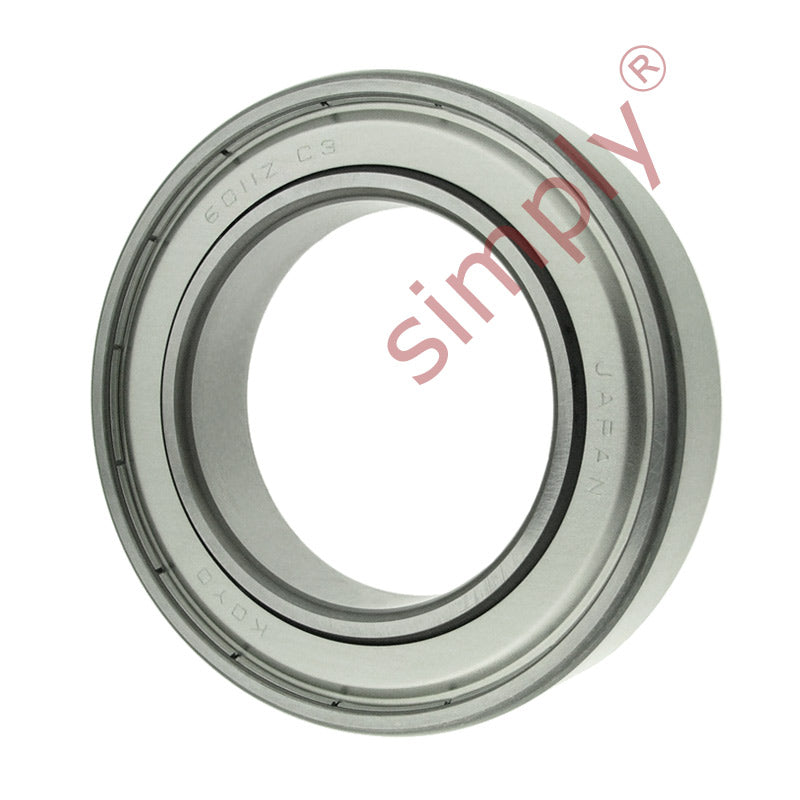

KOYO 60112ZC3 Metal Shielded Deep Groove Ball Bearing 55x90x18mm
Equivalent to: 6011ZZEC3 6011ZZC3 6011.2ZC3 6011KDDC3 6011DDC3 60112ZRC3 6011FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| Inside Diameter d | 55mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 18mm |
| Min radius r | 1.1mm |
| Dynamic load | 28.3 kN |
| Static load | 21.2 kN |
| Max speed in oil | 8900 rpm |
| Max speed in grease | 4300 rpm |
