SKU: 6006DDUC3-NSK
NSK 6006DDUC3 Rubber Sealed Deep Groove Ball Bearing 30x55x13mm
NSK 6006DDUC3 Rubber Sealed Deep Groove Ball Bearing 30x55x13mm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: 6006NSEC3 6006DUC3 6006RSC3 6006RSHC3 6006PC3 6006RSRC3 6006LUC3 60062NSEC3 60062RSC3 60062RS1C3 60062RSHC3 6006PPC3 60062RSRC3 6006LLUC3
In stock
Price Break
4+
CHF 8.21
10+
CHF 7.75
20+
CHF 7.65
30+
CHF 7.56
50+
CHF 7.47
75+
CHF 7.38
100+
CHF 6.92
200+
CHF 6.82
250+
CHF 6.73
500+
CHF 6.64
1000+
CHF 6.45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3

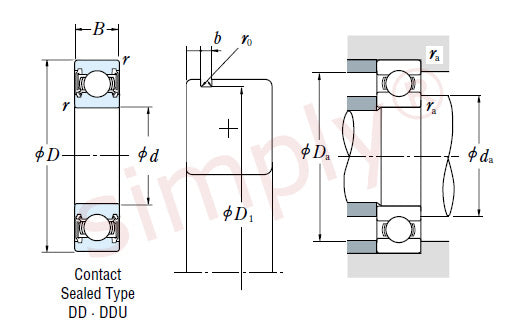

Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 13mm |
| r min | 1mm |
| Dynamic load Cr | 13200 N (1350 kgf) |
| Static load Cor | 8300 N (845 kgf) |
| Factor | 14.7 |
| Speed in grease | 8000 rpm |
| Speed in oil | 15000 rpm |
| Weight | 0.116 kg |
