SKU: 6005LLU/5K-NTN

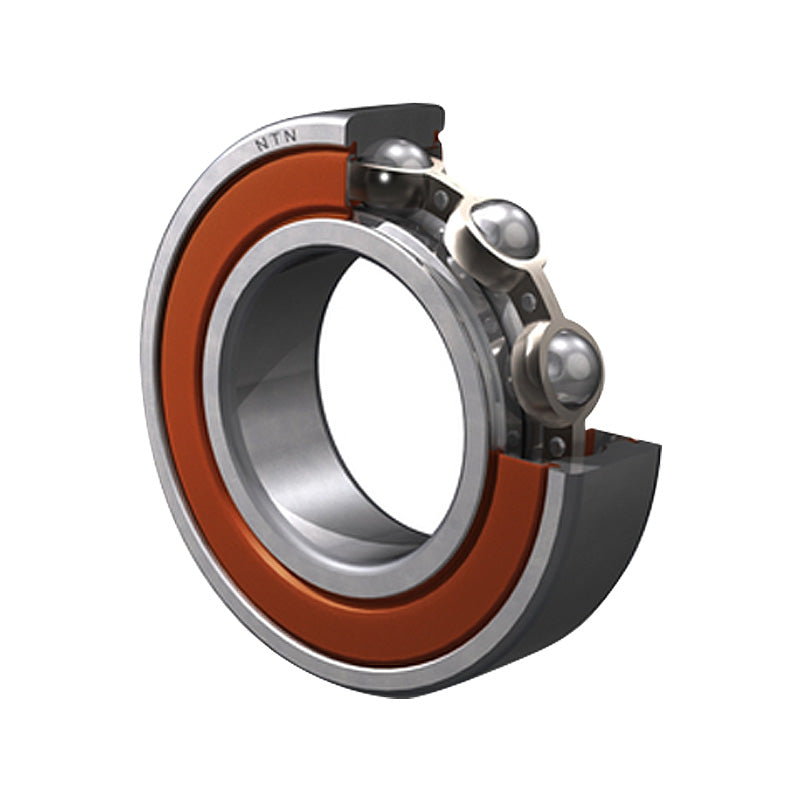

NTN 6005LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 25x47x12mm
Equivalent to: 6005LLUCM 6005NSE 6005DU 6005RS 6005RSH 6005P 6005RSR 6005LU 60052NSE 6005DDU 60052RS 6005-2RS 60052RS1 60052RSH 6005PP 60052RSR 6005LLU 6005RS2 60052RS2 60052RSL 6005LFS 6005EE EL252RS 9105PP 105KSZZ 993L05 6105KK 10L25
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 47mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 11.2 kN |
| C<sub>or</sub> | 5.85 kN |
| C<sub>u</sub> | 0.38 kN |
| f<sub>0</sub> | 14.5 kN |
| Speed | 9400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 29mm |
| d<sub>a</sub> Max. | 30.5mm |
| D<sub>a</sub> Max. | 43mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight Kg | 0.08 kg |
