• NACHI 6005ZZEC3 Metal Shielded Deep Groove Ball Bearing 25x47x12mm
  • Nachi
1 2

SKU: 6005-ZZE/C3-NACHI

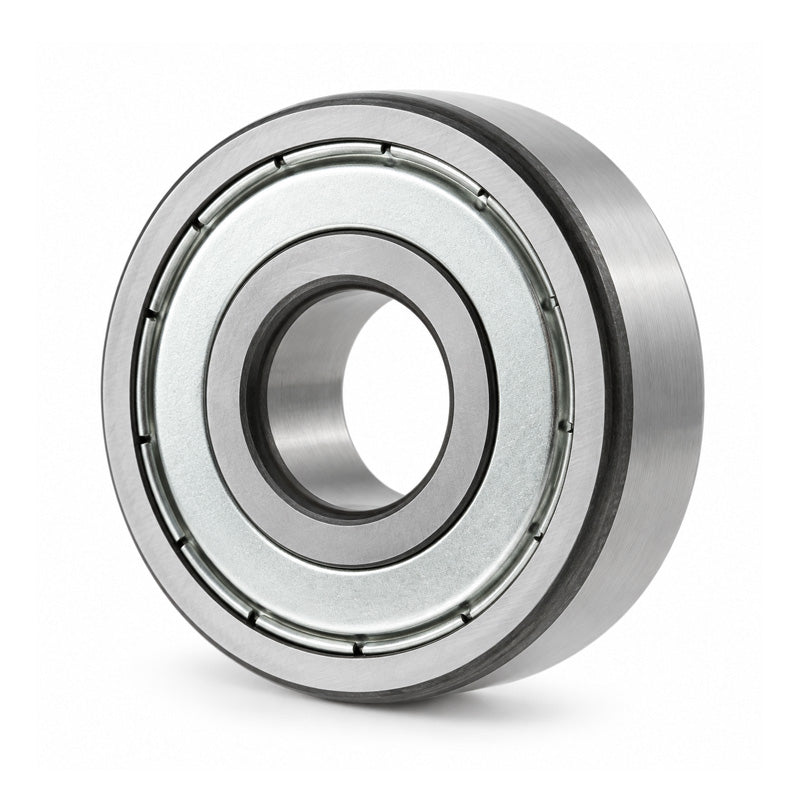

NACHI 6005ZZEC3 Metal Shielded Deep Groove Ball Bearing 25x47x12mm

NACHI 6005ZZEC3 Metal Shielded Deep Groove Ball Bearing 25x47x12mm
CHF 8.00 ex VAT
CHF 8.00 ex VAT
Sale Sold out

Equivalent to: 6005ZZC3 60052ZC3 6005.2ZC3 6005KDDC3 6005DDC3 60052ZRC3 6005FFC3

In stock

Price Break
5+ CHF 5.80
9+ CHF 5.47
19+ CHF 5.41
29+ CHF 5.34
49+ CHF 5.28
74+ CHF 5.21
99+ CHF 4.89
199+ CHF 4.82
249+ CHF 4.76
499+ CHF 4.69
999+ CHF 4.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.
Brand / Quality:
Nachi - High Quality
Inside Diameter:
25mm
Outside Diameter:
47mm
Width:
12mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Technical
Inside Diameter d 25mm
Outside Diameter D 47mm
Width B 12mm
Min radius r 0.6mm
Dynamic load 10100 kN
Static load 5850 kN
Max speed 15000 rpm
da min 29mm
Da max 43mm
ra max 0.6mm
Weight 0.079 kg
