SKU: 6001-2Z/C2ELHT23

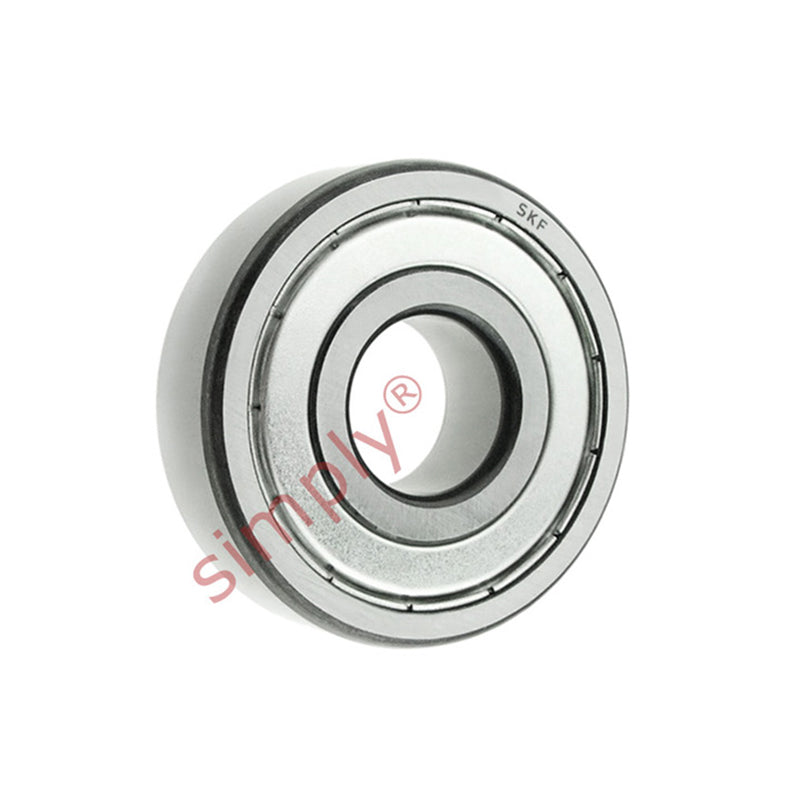

SKF 60012ZC2ELHT23 Metal Shielded Deep Groove Ball Bearing 12x28x8mm
SKF 60012ZC2ELHT23 Metal Shielded Deep Groove Ball Bearing 12x28x8mm
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
Equivalent to: 6001ZC2ELHT23 6001ZZC2ELHT23
In stock
Price Break
4+
CHF 13.96
10+
CHF 13.17
20+
CHF 13.01
30+
CHF 12.86
50+
CHF 12.70
75+
CHF 12.54
100+
CHF 11.76
200+
CHF 11.60
250+
CHF 11.45
500+
CHF 11.29
1000+
CHF 10.98
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C2
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 8mm |
| Dynamic load C | 5.4 kN |
| Static load Co | 2.36 kN |
| Fatigue load limit Pu | 0.1 kN |
| Reference speed | 60000 rpm |
| Limiting speed | 30000 rpm |
| Weight | 0.022 kg |
| d1 | 0mm |
| d2 | 15.2mm |
| D2 | 24.8mm |
| r1r2 min | 0.3mm |
| da min | 14mm |
| da max | 15mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 13 |
