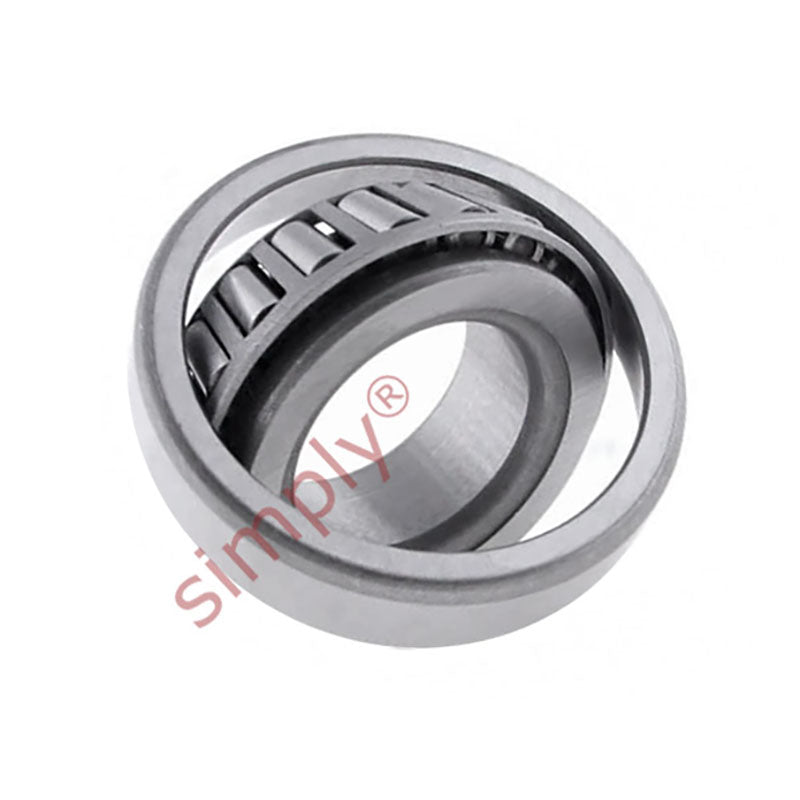

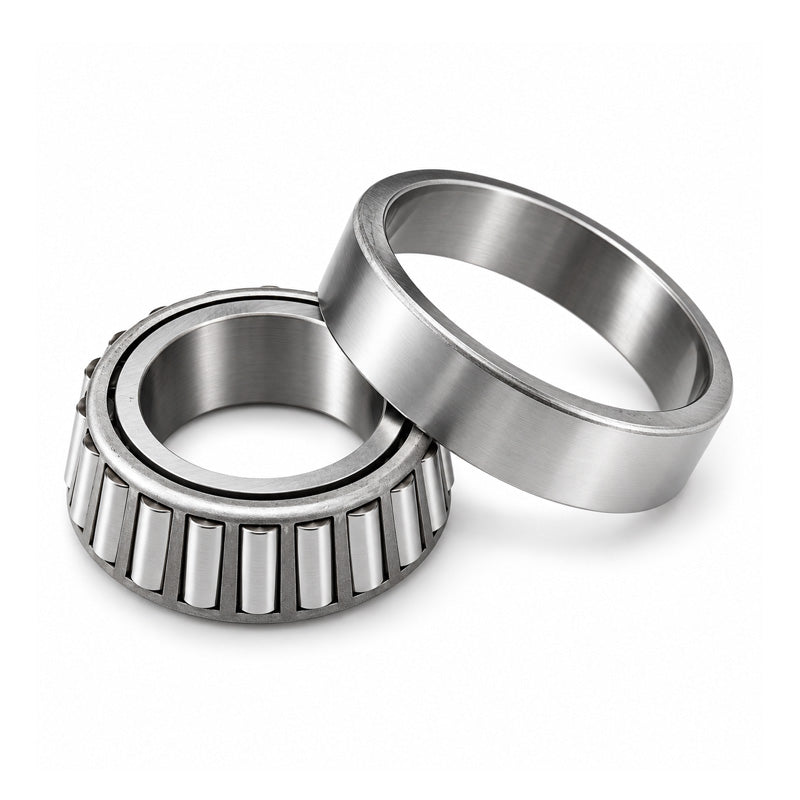

• SKF 580/572/Q Imperial Taper Roller Bearing 3.25x5.5115x1.4375 inches
1 1

SKU: 580/572/Q-SKF

SKF 580/572/Q Imperial Taper Roller Bearing 3.25x5.5115x1.4375 inches

SKF 580/572/Q Imperial Taper Roller Bearing 3.25x5.5115x1.4375 inches
CHF 140.00 ex VAT
CHF 140.00 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
82.55mm = 3.25 (3-1/4) inch
Outside Diameter:
139.99mm = 5.512 inch
Width:
36.51mm = 1.437 (1-7/16) inch
Seals / Shields:
None
Technical
d 82.55mm
D 139.992mm
T 36.512mm
Dynamic load 187 kN
Static load 280 kN
Fatigue load limit Pu 32.5 kN
Reference speed 3400 rpm
Limiting speed 5000 rpm
Weight 2.2 kg
d1 110mm
B 36.098mm
C 28.575mm
r1r2 min 3.5mm
r3r4 min 3.3mm
a 31mm
da max 94mm
db min 94.5mm
Da min 120mm
Da max 127mm
Db min 131mm
Ca min 5mm
Cb min 7.5mm
ra max 3mm
rb max 3mm
Calculation factor e 0.4
Calculation factor Y 1.5
Calculation factor Y0 0.8
