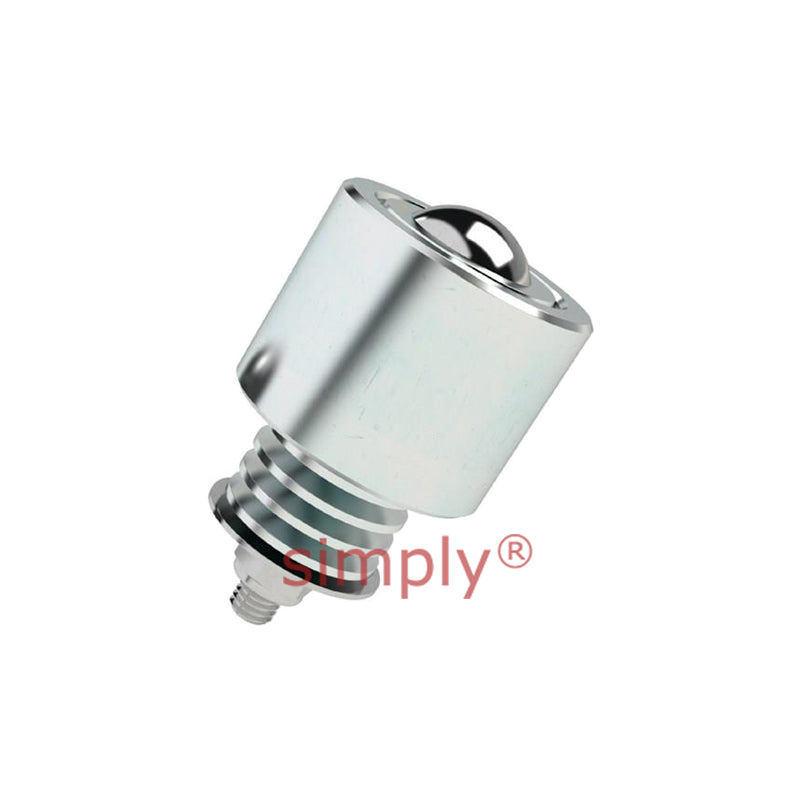

• High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 1000kg - Allow 2-3 Days
1 1

SKU: 570-519

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 1000kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 1000kg - Allow 2-3 Days
CHF 661.00 ex VAT
CHF 661.00 ex VAT
Sale Sold out

In stock

Price Break
4+ CHF 518.09
9+ CHF 488.98
14+ CHF 483.16
19+ CHF 477.34
49+ CHF 471.52
74+ CHF 465.70
99+ CHF 436.59
199+ CHF 430.77
249+ CHF 424.95
499+ CHF 419.13
999+ CHF 407.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MVV64HPJSS
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
50.8mm
Technical
--- Dimensions
Ball Diameter 50.8mm
D 101.6mm
R 101.6mm
X 177.4mm
Y 200.8mm
Z 43.2mm
Max Deflection 6.3mm
--- Loads and Speeds
Supports Load 1000kg
Load to Max Deflection 1597kg
Weight 8.9 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
